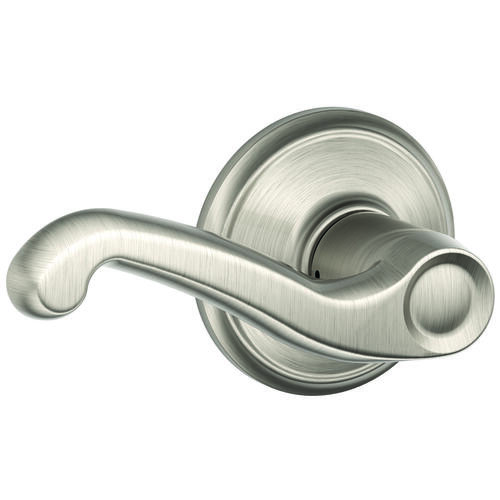

Schlage Residential F10 FLA 619 Flair Series Passage Lever, Zinc, Satin Nickel

F SeriesLever Locks The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last. Available Functions: F10/F75 ? Hall & Closet*: Both knobs/levers always unlocked F40/F76 ? Bed & Bath*: Push-button locking Can be opened from outside with small circular tool Turning inside knob/lever releases button F170 ? Non-turning*: Non-turning

3 Year . F10 FLA 619

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer Warranty3 Year
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Residential F10 FLA 619 Flair Series Passage Lever, Zinc, Satin Nickel
Weight1.700
WeightUnitlbs
Weight_AttribEach Weight
atoms, moq, multiple, tierMinQty11
color, ColorSatin Nickel Plated Clear Coated
diameter, length, width2011.0
length_Attrib, width_AttribKnob or Lever Cross Bore Diameter
MPNF10 FLA 619
qtyInStock-2
qtySourceFieldMap
tierPrice147.58
Finish, Finish Description, Finish FamilySatin Nickel
Function10-Hall/Closet
DesignFlair Lever
StrikeFull Lip 2-1/4 Inch, Radius Corner
Backset2-3/8 Inch or 2-3/4 Inch
Color Code619/US15
WarrantyLimited Lifetime Mechanical and Finish Warranty
Assembled Depth (in )2.5
Assembled Height (in )2.75
Assembled Width (in )5
Certifications and Listings1-UL Listed
Door Handing, HandingReversible
Door Locks & Knobs Product TypePassage Levers
General MaterialMetal
Hardware Finish FamilyNickel
Security/ANSI GradeANSI Grade 2 (Better)
Strike width (in )2.14
Lock TypeUnkeyed
GradeANSI/BHMA Grade 2
Lever StyleFLA-Flair
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Projection2.5000
Door Thickness, For Door Thickness1-3/8" to 1-3/4"
Bore Size2.1250
Product Length5 Inch
Included ComponentsPassage levers, roses, latch, strike, mounting hardware
Door Cross Bore2.125 Inch
Product Material, MaterialZinc
Box Length7.0000
Box Width6.0000
Box Height3.2500
ReturnableYes
Defective CodeA
Commercial or ResidentialResidential
Number in Package1 pk
ADA CompliantYES
Indoor or OutdoorIndoor
Maximum Door Thickness1-3/4"
StyleFlair
Backset Dimension2-3/8 or 2-3/4"
Packaging TypeBoxed
Minimum Door Thickness1-3/8"
Knob styleLever
Door DirectionRight or Left Handed
Knob or Lever Cross Bore Diameter2008-02-01"
Each Weight1.700 LB
VelocityD
Hazardous MaterialNo
Strike Size1-5/8 x 2-1/4 Inch
Bolt Throw Size1/2"
Faceplate Size1 x 2-1/4"
Cross Bore Diameter2-1/8"
Key TypeNot Keyed
Cylinder Type5-Pin
ApplicationResidential Single and Multi-Family Doors
Edge Bore Diameter7/8"
NomenclatureF10FLA619 PSGE LVR FLR SAT NIC
Strike TypeRadius, Full Lip
Backset Size2-3/8 x 2-3/4"
Strike Number10-027
Manufacturer ParentAllegion
Faceplate Dimension1" x 2-1/4"
Door Edge Bore1 Inch
Latch TypeSpring
Function DescriptionLatch retracted by knobs/levers at all times
ANSI FunctionF75
Sub-SeriesF10-FLA
Lever Style FamilyWave Lever
Door PreparationCross Bore 2-1/8"; Edge Bore 7/8"
Box Dimensions (L x W x H)3.25x6x7"
Function FamilyPassage/Hall/Closet
StandardsANSI/BHMA A156.39-2015; UL Listed; ADA
Product Projection2-1/2 Inch
Bolt Throw1/2 Inch
Strike NameRound Corner Full Lip

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareF10 FLA 6191-211 @ $47.58
