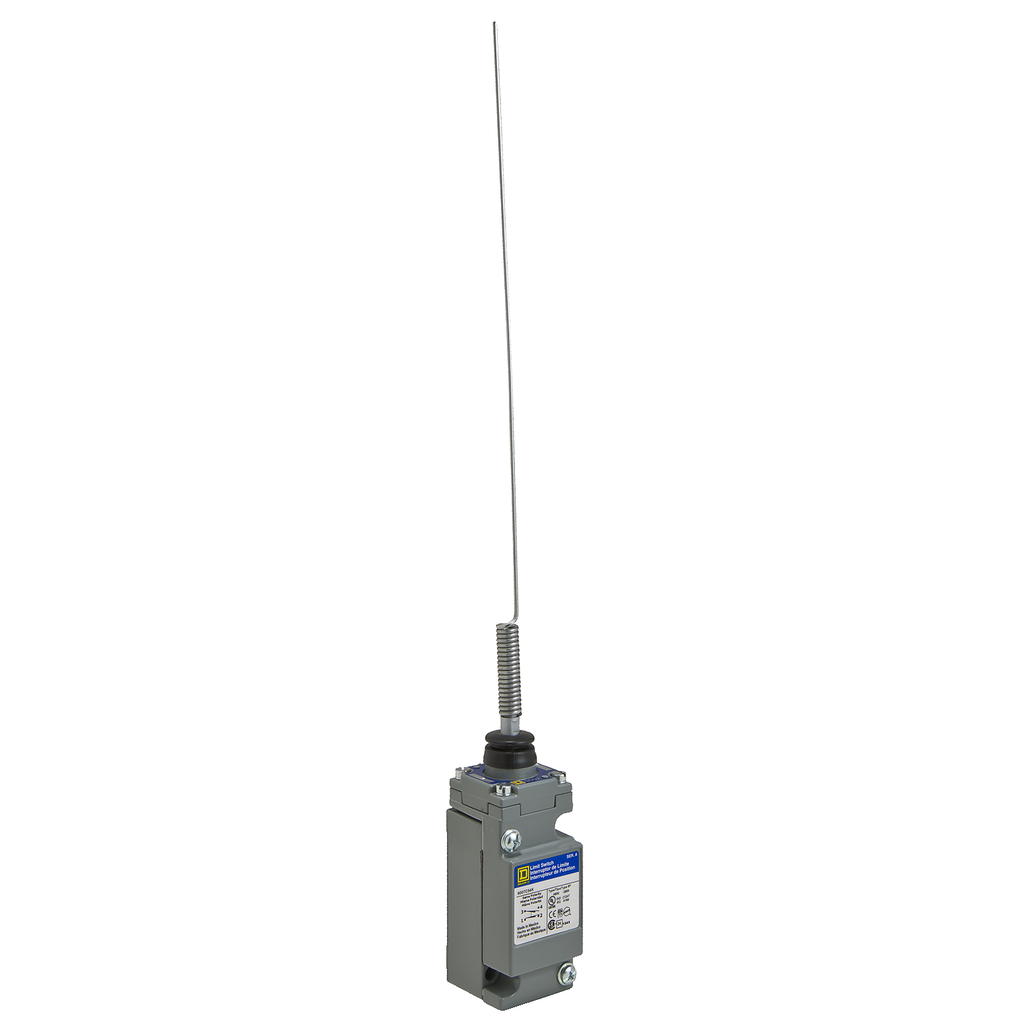

As an Amazon Associate, we earn from qualifying purchases. Home » Mayer Electric Supply » 9007C54KC Limit switch, 9007, 600 V 10amp c +options | Mayer Electric Mayer Electric Supply . 9007C54KC Gallery Attributes Brand name, Manufacturer name, ManufacturerMayer Electric Supply DimensionUnitinch Extra Product NameLimit switch, 9007, 600 V 10amp c +options | Mayer Electric UPC785901542124 Weight1.25 WeightUnitlbs Weight_AttribNet Weight depth, length1.79 height16.28 height_AttribHeight jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-600V-10AMP-C-OPTIONS-785901542124 jsonUrlData22cf83cef-3fe1-41c4-b398-abd200617d64 length_AttribDepth moq, multiple, tierMinQty1, Sale Per Indivisible Quantity, Number Of Poles1 MPN9007C54KC qtyInStock0 SKUSQD9007C54KC tierPrice1260.09 width1.55 width_AttribWidth Movement Of Operating Headmulti-directional Range Of Product9007 Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2 Fixing Modeby the body Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1 Product Or Component Typelimit switch Materialmetal Type Of Operatorsteel spring return wobble stick coil spring extension) Head Typemulti-directional head Switch Actuationby any moving part Type Of Approachmulti-directional approach, multi-directional approach Series Nameheavy duty Contacts Type And CompositionNC-NO Body Typeplug-in Positive Opening, Local Signallingwithout Contact Operationsnap action Product Specific Applicationstandard box Device Short Name9007C Warranty18 months Maximum Displacement Angle90 ? Height8.14-8.14 in Terminals Description Iso N?1(1-2)NC || (3-4)NO Tripping Angle10 ? Contacts Materialsilver contacts [Ithe] Conventional Enclosed Thermal Current10 A Contact FormForm Z Head Material, Body Materialzinc Net Weight1.25 lb(US) [Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block Short-Circuit Protection10 A CC non-time delay [Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA Mechanical Durability10000000 cycles Switch FunctionSPDT-DB [Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA Width1.55 in Depth1.79 in Electrical Durability1000000 cycles Rohs Exemption Information, Mercury FreeYes Environmental DisclosureENVPEP111160EN Sustainable Offer StatusGreen Premium product Reach RegulationReference contains Substances of Very High Concern above the threshold Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope) Ambient Air Temperature For Operation-20-185 ?F standard environment Shock Resistance60 gn 9 ms IEC 60068-2-27 Vibration Resistance25 gn 10-150 Hz)IEC 60068-2-6 Ip Degree Of ProtectionIP67 conforming to IEC 60529 Ambient Air Temperature For Storage-20-185 ?F Environmental Characteristicstandard environment Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 Electrical Shock Protection Classclass 0 IEC 61140 Protective Treatmentepoxy powder coat Distributor offers SellerSKUMOQIn stockMultiplePrices mayerelectric.comSQD9007C54KC111 @ $260.09
