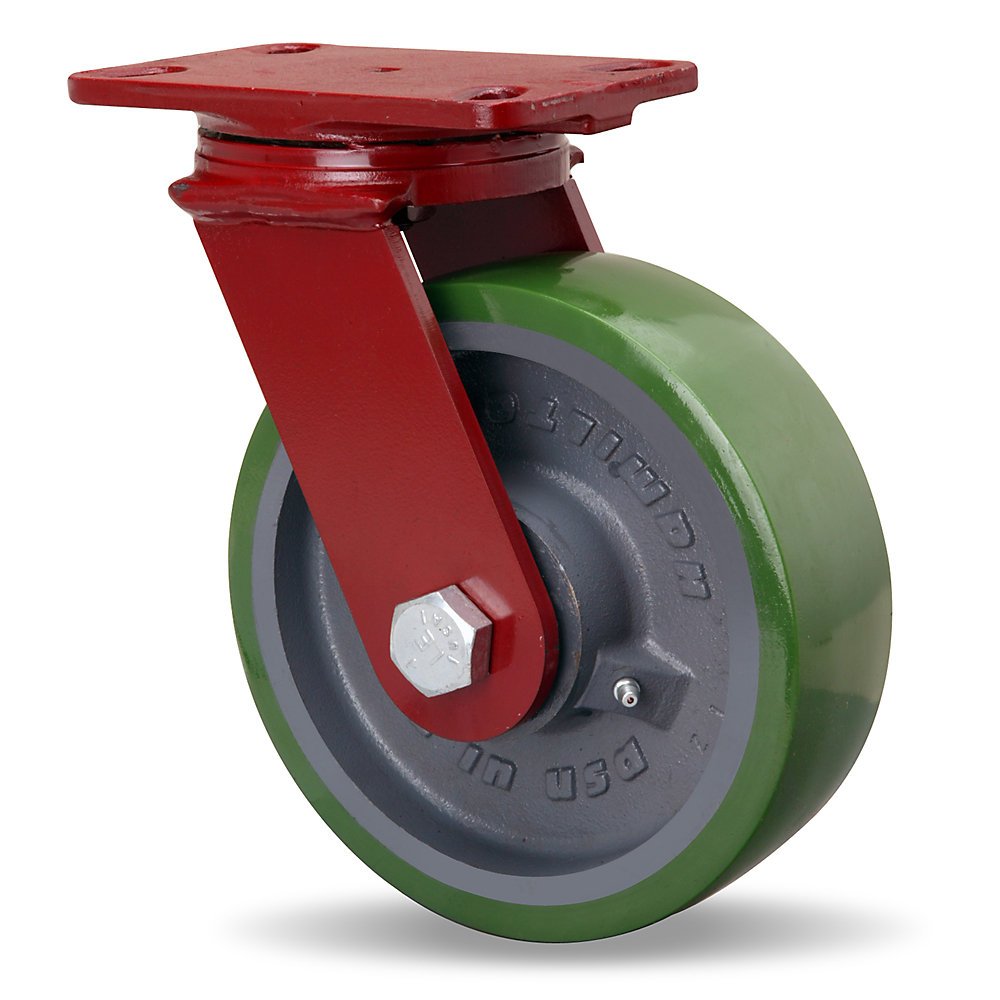

ForgeMaster Swivel Caster, 8" x 2-1/2" Duralast Polyurethane (95A) on Cast Iron Wheel

The Hamilton Forgemaster Caster features an 8-inch diameter Duralast polyurethane wheel with a 2.5-inch wide tread. It includes precision tapered roller bearings and swivels. The caster has a red color and a package quantity of one.

Hamilton Forgemaster Casters - 8"Dia.X2.5"W Duralast Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - Swivel - Green

Hamilton . S-FM-8DT

Gallery

Attributes

Brand name, Manufacturer name, Brand, Label, Man, Publisher, StudioHamilton
ManufacturerHamilton Hamilton Caster & Mfg Co
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-FM-8DT
Extra Product NameForgeMaster Swivel Caster, 8" x 2-1/2" Duralast Polyurethane (95A) on Cast Iron Wheel
UPCNone
UnitOfMeasureEA
Weight30 30.0 30.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead, Wheel Dia8
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3708842
tierPrice1295.00
urlhttps://www.zoro.com/hamilton-forgemaster-swivel-caster-8-x-2-12-duralast-polyurethane-95a-on-cast-iron-wheel-s-fm-8dt/i/G3708842/
Product Group, ProductGroupHome Improvement
Wheel Width2.5
Plate Size4 1/2 x 6 1/2
Mounting Bolt Dia0.5
Mounting Height10.25
Caster Wheel ShapeStandard
Caster Wheel/Tread MaterialPolyurethane
Load Rating2000
Core ColorGray
Non-Marking, Thread GuardsNo
Caster Wheel Bearings, DisplayNameTapered
Caster Product Group, ItemSwivel Caster
Frame FinishPowder Coat
Caster Plate Hole PatternA
Caster Temp Range-50 to 200 deg(F)
Outside Bolt Hole Spacing3 3/8 x 5 1/4
StandardsICWM
Inside Bolt Hole Spacing2 7/16 x 4 15/16
Caster Frame MaterialForged Steel
Replacement WheelW-825-DT-3/4
Caster Core MaterialCast iron
ASIN, AsinB00JR1I3BQ
BindingMisc.
Bullet_point-3/4" Precision Tapered Roller Bearings Capacity: 2000 lbs. Overall Height: 10.25" Wheel Dia.xW: 8x2.5" Wheel Type: Polyurethane
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 16310181 16410991 16411251
ClassificationId16411311
Colorred
FeatureWheel Type: Polyurethane
Height10.25 1000 2.5 2.50 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHamilton® ForgeMaster™ Swivel 8 x 2-1/2 Duralast™ Tapered 2000 Lb. Caster
Item_package_weight, Item_weight30.0
Item_type_keywordtapered-roller-bearings
Length0.0 0.00 10.25 8.0
Linkhttps://m.media-amazon.com/images/I/41eHcIDODaL._SL75_.jpg https://m.media-amazon.com/images/I/41eHcIDODaL.jpg https://m.media-amazon.com/images/I/61s3msforiL.jpg
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameTOOLS
Product_descriptionHAMILTON ForgeMaster CastersA feature precision tapered thrust bearings placing them among the top double-ball race casters on the market today. -3/8" thick drop forged steel mounting plate. -5/16x2-1/2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Product_site_launch_date2014-04-07T00:00:00.000-07:00
SkuS-CH-8DT S-FM-8DT
TitleHamilton Forgemaster Casters - 8"Dia.X2.5"W Duralast Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - Swivel - Green
URLhttp://ecx.images-amazon.com/images/I/41eHcIDODaL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 2.5 500 75 8.0 8.00

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3708842111 @ $295.00
motionindustries.com058648191Not in Stock, Available to Order11 @ $332.18
AmazonTPB00JR1I3BQ111 @ $288.49
ZoroG907233811
AmazonSCB00JR1I3BQ1-211 @ $288.49
National Supply Network17584021-211 @ $325.46
ZoroG3284471111 @ $243.73

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton® ForgeMaster™ Swivel 8 x 2-1/2 Duralast™ Tapered 2000 Lb. Caster
Brand: Hamilton
HAMILTON ForgeMaster CastersA feature precision tapered thrust bearings placing them among the top double-ball race casters on the market today. -3/8" thick drop forged steel mounting plate. -5/16x2-1/2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy 1" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has 1" precision tapered thrust bearing that counteracts radial thrust. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Details
  • Wheel Type: Polyurethane
  • Wheel Dia.xW: 8x2.5"
  • Capacity: 2000 lbs.
  • Overall Height: 10.25"
  • -3/4" Precision Tapered Roller Bearings
Listing
BindingMisc.
Product groupHome Improvement
Product typeTOOLS
ModelS-FM-8DT
Part numberS-FM-8DT
Items per pack1
LabelHamilton
ManufacturerHamilton
Catalog
FeatureWheel Type: Polyurethane
CategoryIndustrial & Scientific
MPNS-FM-8DT
Product groupHome Improvement
Product typeTOOLS
ManufacturerHamilton
