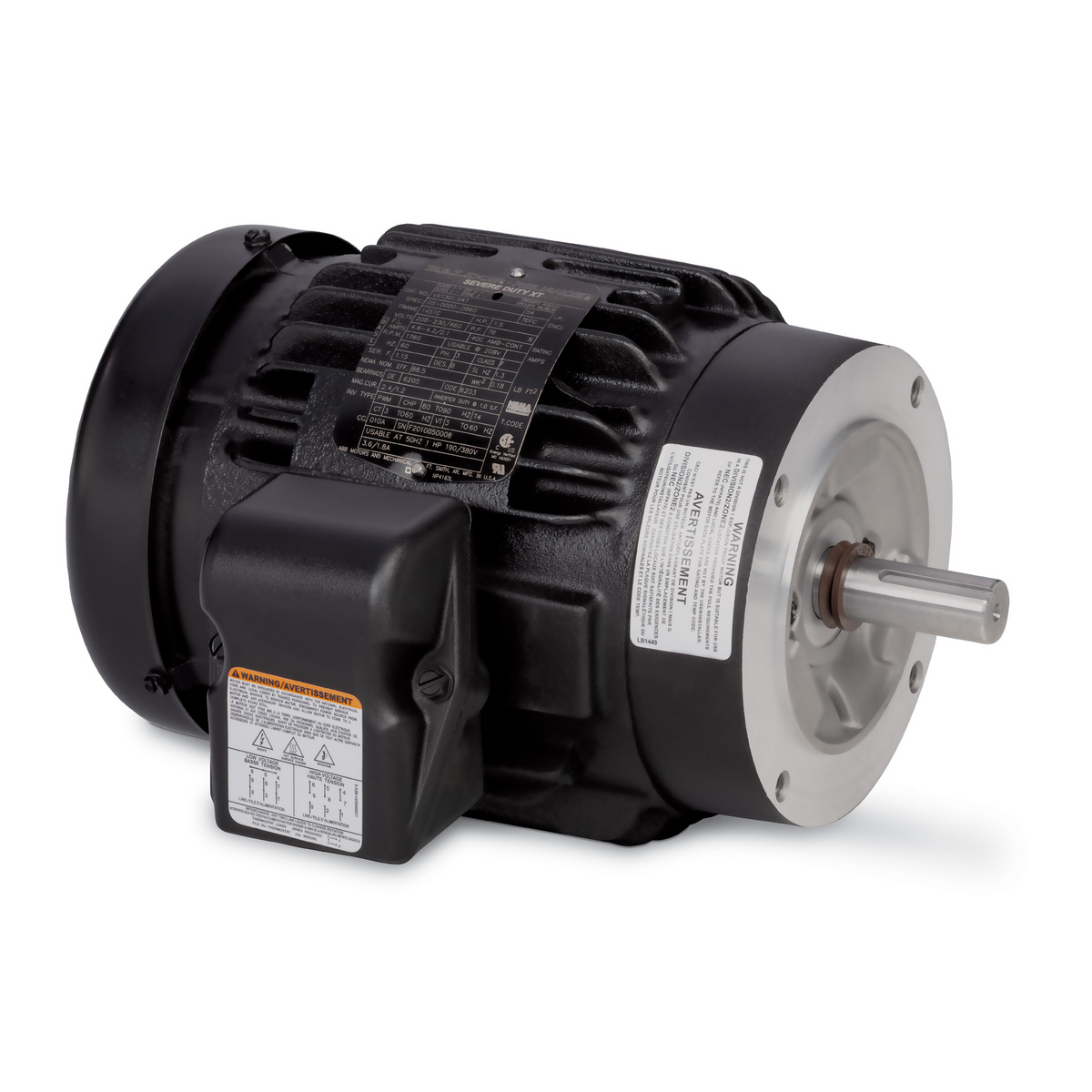

Baldor VXT3016T Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 1RPM: 1160Volts: 208-230/460Amps: 3.4/1.7Hz: 60Phase: 3Frame: 145TCEnclosure Material: IronMounting: C-FaceShaft Diameter: 0.875"Overall Length: 12.54"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 82.5%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cycle:
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor VXT3016T Three Phase Severe Duty XT Motor |
| Voltage, Volts | 208-230/460 |
| Weight | 56 |
| WeightUnit | lbs |
| diameter, height, width | 0.875 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 12.54 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, HP, Number of Speeds | 1 |
| MPN, SKU | VXT3016T |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 796.47 |
| Product Type | Three Phase |
| RPM | 1160 |
| Amps | 3.4/1.7 |
| Hz | 60 |
| Phase | 3 |
| Frame | 145TC |
| Enclosure Material | Iron |
| Mounting | C-Face |
| Shaft Diameter | 0.875" |
| Overall Length | 12.54" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 82.5% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 05-0000-0916 |
| Ship Weight | 56 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| VXT3016T | 1 | -2 | 1 | 1 @ $796.47 |
