Hamilton

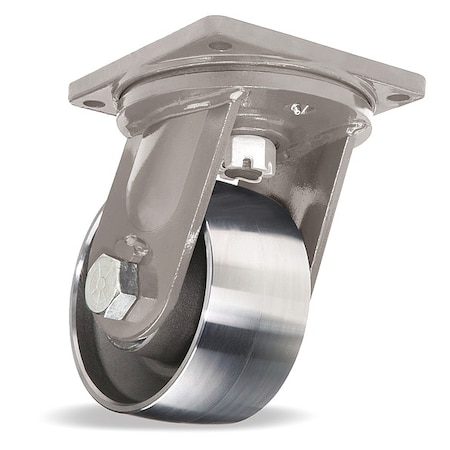

Hamilton . S-MD-84FST-4SL-HCB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA34
UnitOfMeasureEA
Weight86
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width12
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-MD-84FST-4SL-HCB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9073222
tierPrice1879.36
urlhttps://www.zoro.com/hamilton-plate-caster-17000-lb-load-rating-s-md-84fst-4sl-hcb/i/G9073222/
Caster Sub-TypeSwivel
Load Rating17,000 lb
Wheel Dia8 in
Wheel Width, Overall Wheel Width4 in
TreadFlat
NSF Listed, With Toe Plate, Leveling Caster, Non-Marking, Includes Mounting Fasteners, Includes Thread GuardsNo
For Surface TypeConcrete
Tread ShapeStandard
Wheel/Tread Hardness RatingExtra Hard
Wheel TypeFlat-Free
Mounting Plate Thickness, Mounting Bolt Dia5/8 in
ItemStandard Plate Caster
Wheel/Tread Hardness179 BHN
Swivel Lock Type4-Position Directional Lock
Tire StyleTubeless
Swivel ConstructionKingpin
Operating Temperature Range-40 Degrees to 320 Degrees F
Mounting Height11 in
Frame FinishPowder Coated
Caster Brake TypeFace Contact Brake
For Axle Dia1 1/4 in
Caster Mounting TypePlate
Swivel Lead2 1/2 in
Mounting Plate Bolt Hole PatternD
Swivel Radius6 1/2 in
SeriesMaxi-Duty
Load Rating Range6000 lb and Greater
Frame ConstructionForged
Outside Bolt Hole Spacing, Inside Bolt Hole Spacing7 in x 7 in
ESD Conductive, Includes Spanner BushingYes
Swivel Raceway TypeRoller
StandardsICWM
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Plate Size8 1/2 in x 8 1/2 in
Brake LocationFace
Wheel Bearing Material, Caster Frame Material, Wheel/Tread MaterialSteel
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Wheel/Tread Color, Core Color, Frame ColorSilver
Wheel Bearing TypeTapered Roller
Number of Mounting Holes4
Swivel Bearing Seal TypeOpen
Wheel Core MaterialForged Steel
Wheel Core TypeSolid
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9073222111 @ $879.36
Grainger55HA3411
