Hamilton

Hamilton . S-HSK-6HFSB-H4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55GZ73
UnitOfMeasureEA
Weight18
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width10
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-HSK-6HFSB-H4SL-FB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9072461
tierPrice1367.03
urlhttps://www.zoro.com/hamilton-plate-caster-800-lb-load-rating-s-hsk-6hfsb-h4sl-fb/i/G9072461/
Caster Sub-TypeSwivel
Load Rating800 lb
Wheel Dia6 in
Wheel Width, Overall Wheel Width, Swivel Lead2 in
Includes Thread Guards, Includes Mounting Fasteners, With Toe Plate, NSF Listed, Non-Marking, Leveling CasterNo
Swivel Lock Type4-Position Directional Lock
Number of Mounting Holes4
StandardsICWM
Wheel/Tread Hardness RatingExtra Hard
Caster Frame Material, Wheel/Tread MaterialSteel
Wheel TypeFlat-Free
Wheel Bearing MaterialStainless Steel
FeaturesDurable, High Heat, Quiet Operation, Reliable
Core Color, Wheel/Tread ColorSilver
Frame FinishEnamel
For Surface TypeConcrete
Wheel Bearing TypePrecision Ball
Frame ConstructionForged
Mounting Plate Bolt Hole PatternA
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Load Rating Range300 to 999 lb
Frame ColorBlack

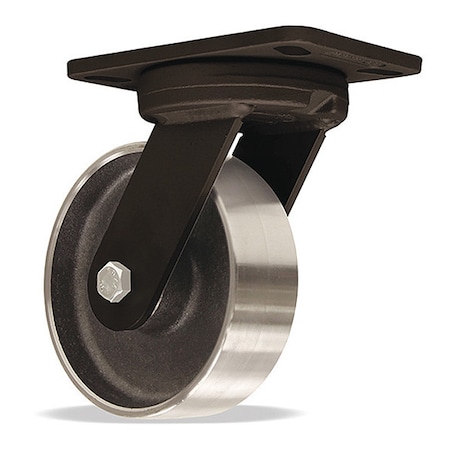

ItemHeat-Resistant Kingpinless Plate Caster
Caster Mounting TypePlate
Swivel Raceway TypeSingle Ball
Mounting Height7 3/4 in
Tread ShapeStandard
For Axle Dia, Mounting Bolt Dia1/2 in
Brake LocationRight Side
Includes Spanner Bushing, ESD ConductiveYes
Caster Brake TypeSide Pedal Brake
Wheel Core TypeSolid
Caster Product GroupKingpinless Caster with 4-Position Directional Lock and Brake
Operating Temperature Range-50 Degrees to 200 Degrees F
TreadFlat
Mounting Plate Thickness5/16 in
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Plate Size4 1/2 in x 6 1/2 in
Swivel Radius5 in
Swivel ConstructionKingpinless
SeriesInferno
Swivel Bearing Seal TypeOpen
Tire StyleTubeless
Wheel/Tread Hardness179 BHN
Wheel Core MaterialForged Steel
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9072461111 @ $367.03
Grainger55GZ7311
