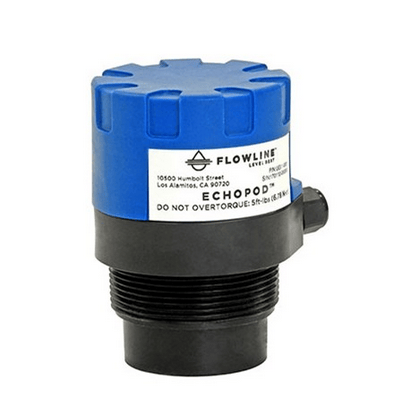

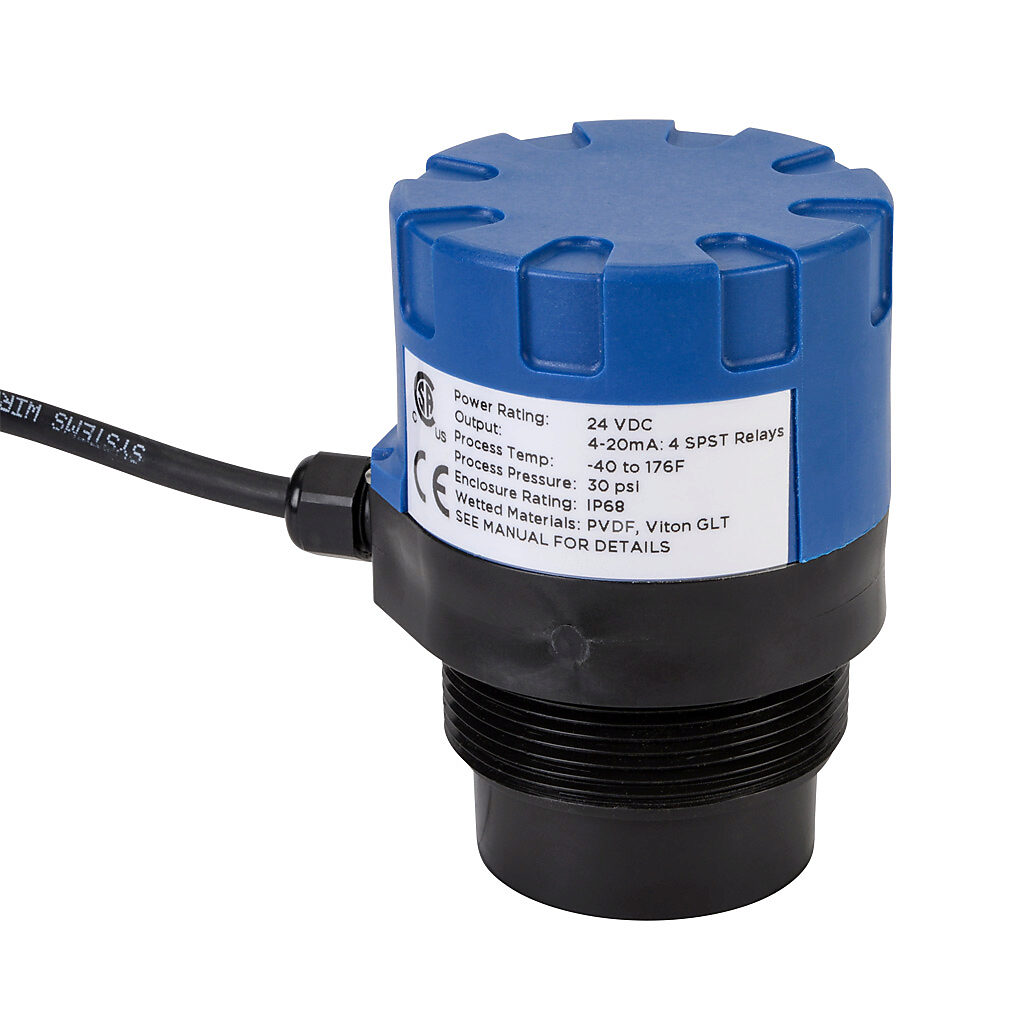

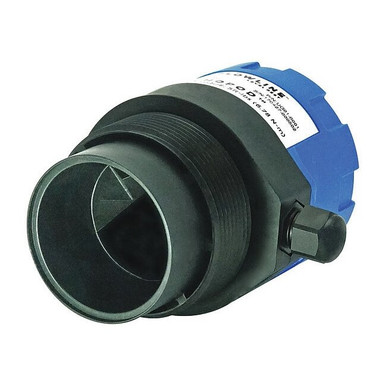

Flowline - UG03-0001-40 - EchoPod General Purpose REFLECTIVE Ultrasonic Level trans - RS

Flowline, UG03-0001-40, EchoPod Reflective Ultrasonic Multi-Function Liquid Level Transmitter 3m (9.8') Range, 2" NPT, 4 SPST Relays, without Fob The general purpose reflective ultrasonic multi-function level transmitter provides continuous level measurement. The non-contact liquid level sensor features our proprietary Reflective Technology that delivers reliable level measurement in condensing environments. Each relay can be configured for alarm, automatic fill or empty functions. Select this sensor for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. Features: Fail-safe diagnostics with selectable relay and signal outputs Narrow 2" (5cm) beam width for applications with limited space Corrosion resistant PVDF transducer and compact PP enclosure Short 1.5" (3.8cm) dead band maximizes tank filling capacity Automatic temperature compensation from -40 Degree to 80 Degree C. Four programmable relays with embedded level control logic 1 pump or valve with 3 alarms 2 pumps lead-lag with 2 alarms 2 pumps duplexing with 2 alarms 4 independent switch point alarms Reflective
