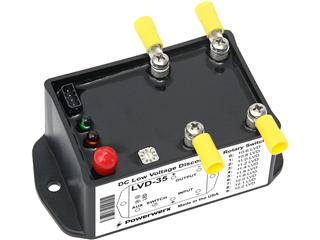

Powerwerx, LVD-35, DC Power Other, LVD35

Features User selectable settings for Battery Low Voltage Disconnect setpoint: 10.6, 10.8, 11.0, 11.2, 11.4, 11.6, 11.8, 12.0, 12.1, 12.2 VDC. Will automatically reconnect batteries when the battery voltage reaches 12.8 VDC or higher. Super low standby current draw of 4mAh will not drain battery Smart! No ignition wire is required Emergency Override feature – gives an extra 15 minutes of operation when needed Install between the 12V battery and the DC load. Typically, the load is a two-way mobile radio, mobile computer and other vehicle DC electronics. Standard installation involves installing between the battery and the DC feed side of the radio using the supplied ring terminals. An Emergency Override Switch may be installed to the extra ring terminal position (AUX) which is located next to the LED lights. By momentary applying 12V to this terminal (with a user supplied switch) it will automatically override the LVD disconnect condition and give you an additional 15 minutes of use for emergency operation. Over Voltage Protection is included in the unit. Should the LVD-35 ever receive a voltage of 16.5 volts or higher, the unit will automatically shut off protecting the electronics connected on the load side of your unit. Once the voltage drops to 15.0 volts or less, the LVD-35 will automatically turn back ON. Specifications Amperage Rating: 35 Amps max @ 12V continuous duty Input Voltage Range: 9.5 ~ 17.0 V Low Voltage Battery Disconnect Settings: 10.6, 10.8, 11.0, 11.2, 11.4, 11.6, 11.8, 12.0, 12.1, 12.2V (selectable) Reconnect Voltage: 12.8V or more Low Standby Current Draw: 4mA in standby mode, 94 mA normal operation mode Compact Size: 3.5"L x 2"W x 1.5"H Weight: 0.5 lbs. (229 grams)
