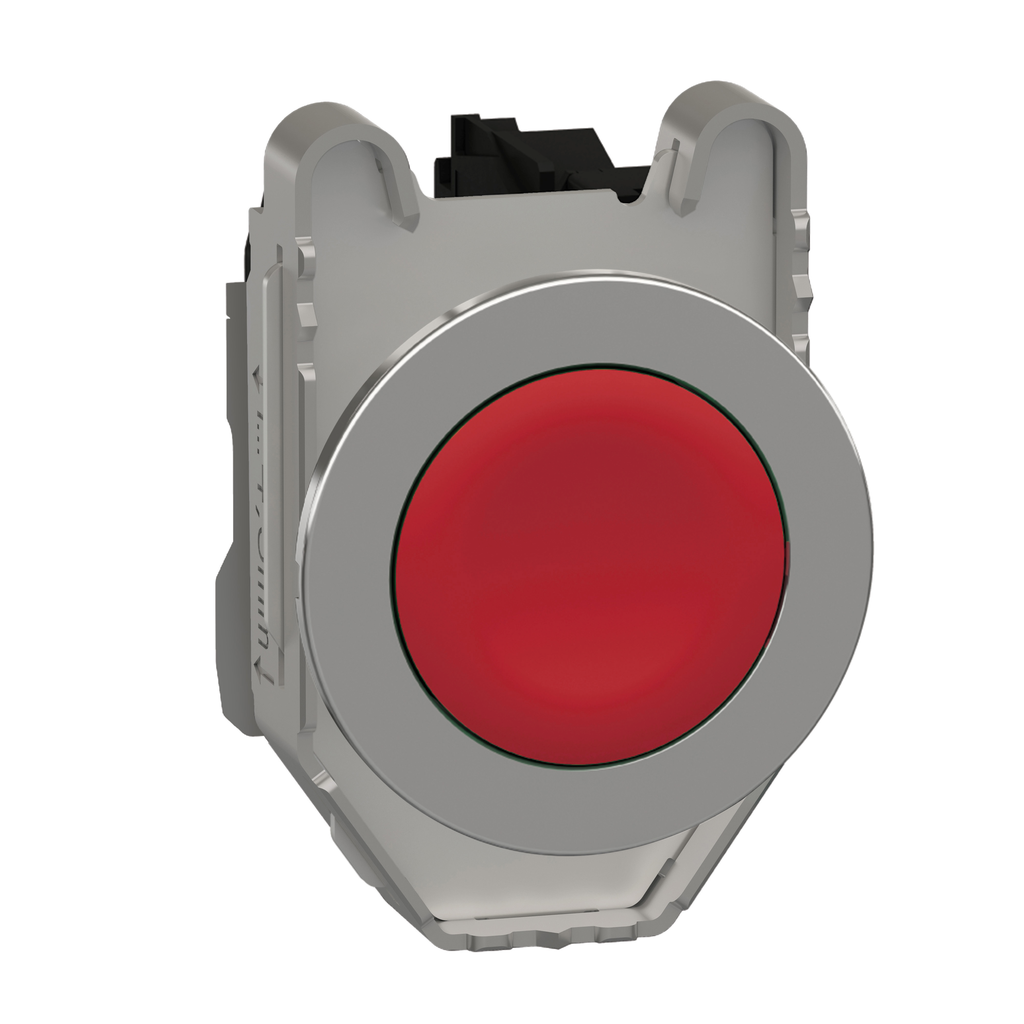

Harmony XB4, Push button flush mounted, metal, red, ?30, spring return, unmarked, 1 NC | Mayer Electric

SQUARE D . SQDXB4FA42

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB4, Push button flush mounted, metal, red, ?30, spring return, unmarked, 1 NC | Mayer Electric
UPC, MPN, SKUSQDXB4FA42
Weight0.116
WeightUnitkg
Weight_AttribNet Weight
depth, length55.0
height47.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-XB4-Push-button-flush-mounted-metal-red-Ø30-spring-return-unmarked-1-NC-SQDXB4FA42
length_AttribDepth
moq, multiple, Sale Per Indivisible Quantity1
qtyInStock0
width36.6
width_AttribWidth
Range Of ProductHarmony XB4
Mounting Diameter30.5 mm
Type Of Operatorspring return
Product Or Component Typepush-button
Shape Of Signaling Unit Headround
Fixing Collar Materialzamak
Head Typebuilt-in-flush
Contacts Type And Composition1 NC
Bezel Materialchromium plated metal
Contact Operationslow-break
Operator Profilered flush, unmarked
Product CompatibilityZBYF... || ZBZF32 || ZBZF33
Device Short NameXB4F
Warranty18 months
Contacts Usagestandard contacts
Height47 mm
Terminals Description Iso N?1(13-14)NO
Operating Force3.5 N NC changing electrical state
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Fixing Modeby screws
Operating Travel1.5 mm NC changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith NC contact EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.116 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1
Mechanical Durability10000000 cycles
Width36.6 mm
Depth55 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Device Mountingbuilt-in
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || CSA
Ik Degree Of ProtectionIK06 IEC 50102
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass I IEC 60536
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
