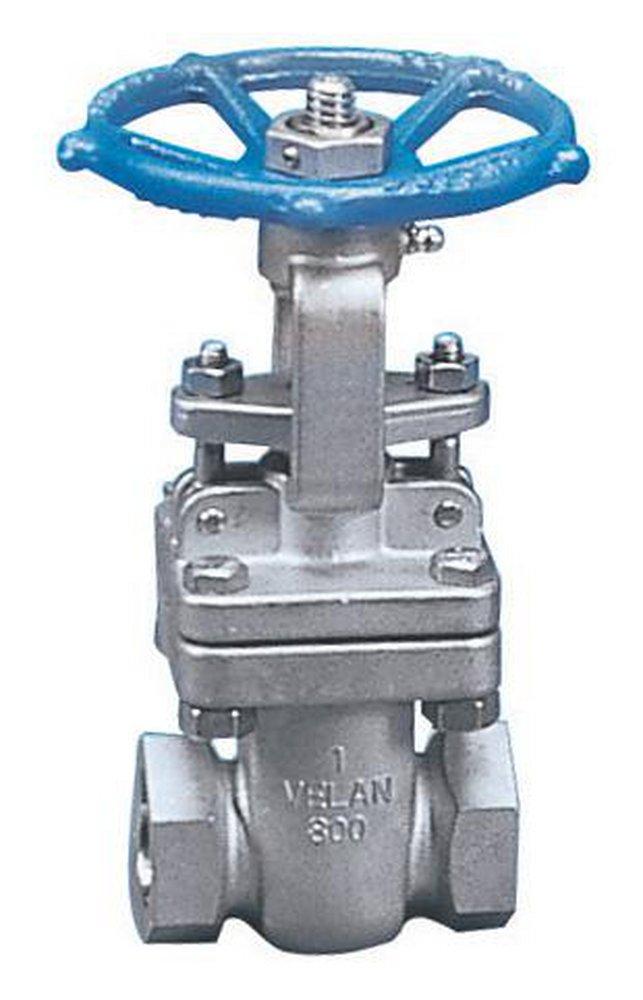

3/4in. 800# SW A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel
Shop for 3/4in. 800# SW A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel from Velan Valve At Ferguson. Ferguson is the #1 US plumbing supply company and a top distributor of HVAC parts, waterworks supplies, and MRO products.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Velan Valve |
|---|---|
| CategoryL1 | Valves |
| CategoryL2 | Gate Valves |
| DimensionUnit | inch |
| Extra Product Name | 3/4in. 800# SW A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel |
| Weight | 5.3 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| length | 3.25 |
| length_Attrib | Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN | W042054B02TY |
| qtyInStock | Not available |
| SKU | 189997 |
| tierPrice1 | 53.30 |
| API | API 602 |
| ASME | ASME Class 800, ASME B16.34 |
| ASTM | ASTM A-105 |
| End Connection 1, End Connection 2, End Connections | Socket Weld |
| FM Approved, NSF Certified, UL Listed | No |
| Handle Material | Malleable Iron |
| Length | 3-1/4 in |
| Material, Valve Body Material | Forged Steel |
| Material Type | A105 |
| Maximum Temperature | 100 |
| Pressure - Maximum | 1975 psi |
| Pressure Class | 800# |
| Temperature Range | Up to 100 Deg F |
| Valve Bonnet Type | Bolted |
| Valve Disc Material | CR 13 |
| Valve Operator | Handwheel |
| Valve Port Opening | Standard Port |
| Valve Seat Material | CoCr Alloy |
| Valve Size | 3/4 in |
| Valve Stem | Outside |
| Valve Type | Gate Valve |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 189997 | 1 | Not available | 1 | 1 @ $53.30 |
