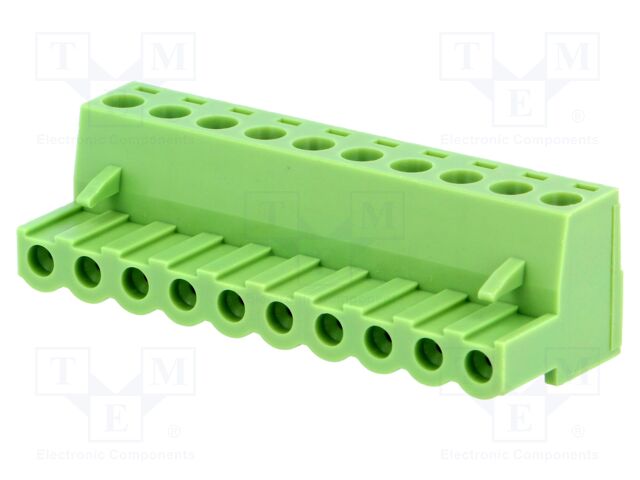

XINYA XY2500F-B(5.08)-10P | Pluggable terminal block; 5.08mm; ways: 10; straight; plug; female
XINYA XY2500F-B(5.08)-10P | Pluggable terminal block; 5.08mm; ways: 10; straight; plug; femal
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| Extra Product Name | XINYA XY2500F-B(5.08)-10P | Pluggable terminal block; 5.08mm; ways: 10; straight; plug; female |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | b8703bcc62739d2f0ab17db0453fd506.5 |
| jsonUrlData2 | 103913ee4ffe7e80fa82 |
| MPN | XY2500F-B(5.08)-10P |
| qtyInStock | 5910 |
| SKU | TBW-5.08-K-10P |
| snippet | XINYA XY2500F-B(5.08)-10P | Pluggable terminal block; 5.08mm; ways: 10; straight; plug; femal |
| tierMinQty2, Number of ways, Number of terminals | 10 |
| tierMinQty3 | 50 |
| tierMinQty4 | 200 |
| tierMinQty5 | 600 |
| tierPrice1 | 1.05 |
| tierPrice2 | 0.875 |
| tierPrice3 | 0.777 |
| tierPrice4 | 0.71 |
| tierPrice5 | 0.633 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp, |
| Colour | green |
| Rated voltage | 250V |
| Locking system | latch |
| Type of pin configuration | 1x10 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Conform to the norm | UL |
| Contact plating | nickel plated |
| Operating temperature | -40...120?C |
| Contact material | brass |
| Wire cross section | 2.5mm |
| Wire size | 28AWG...12AWG |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBW-5.08-K-10P | 1 | 5910 | 1 | 1 @ $1.05, 10 @ $0.88, 50 @ $0.78, 200 @ $0.71, 600 @ $0.63 |
