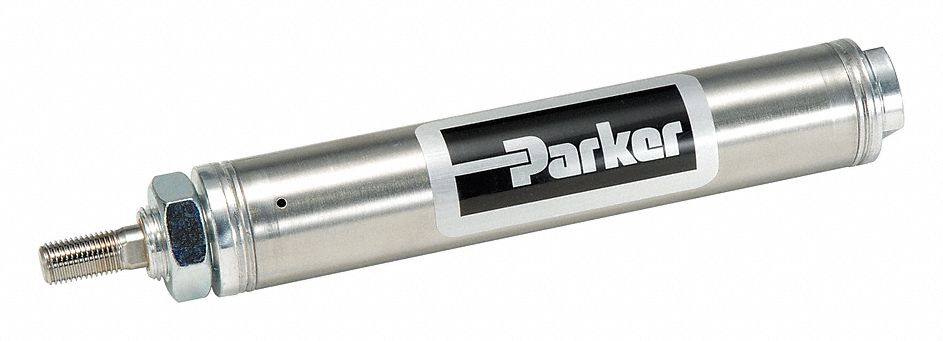

PARKER . 0.44NSR01.50
Round Air Cylinder 7/16 Inch Bore 1-1/2 Inch Stroke | 49J566 | Worldwide Delivery | +44 203 287 5224 | [email protected]
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PARKER |
|---|---|
| DimensionUnit | inch |
| UNSPSC | 27131701 |
| diameter, height, width | 0.4375 |
| height_Attrib, width_Attrib | Air Cylinder Bore Dia. |
| length | 5.07 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN | 0.44NSR01.50 |
| qtyInStock | 0 |
| SKU | 49J566 |
| tierPrice1 | 28.29 |
| Item, Air Cylinder Product Group | Air Cylinder |
| Cylinder Action, Single Acting/Double Acting | Single Acting |
| Air Cylinder Bore Dia, Bore Dia | 7/16 in |
| Stroke | 1 1/2 in |
| Air Cylinder Type | Round Body |
| Air Cylinder Mount, Mount | Nose |
| Body Material, Piston Rod Material, Tube Material | Stainless Steel |
| Port Size, Rod Thread Size | #10-32 UNF |
| Cushion Type | None |
| Temp Range | -10 Degrees to 165 Degrees F |
| Cylinder Type | Round Non-Repairable |
| Overall Length | 5.07 in |
| Piston Material, End Cap Material | Aluminum |
| Finish | Silver |
| Magnetic Piston | No |
| Nose Mount Thread | 3/8"-24 |
| Rod Dia | 0.188 in |
| Rod Thread Length | 0.5 in |
| Spring Retraction Force | 1 lb |
| Features | Non-Switch Ready |
| Max Pressure | 250 psi |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 49J566 | 1 | 1 | 1 @ $28.29 | ||
 Zoro | G6159124 | 1 | 1 | 1 @ $17.35 | |
| AJ2DYK | 1 | 1 | 1 @ $39.51 | ||
| Amazon | B01LZ6E5EC | 1 | 1 | ||
| Applied Industrial | 116234486 | 1 | 1 | ||
 Radwell | 0.44NSR01.50 | 1 | 1 |
