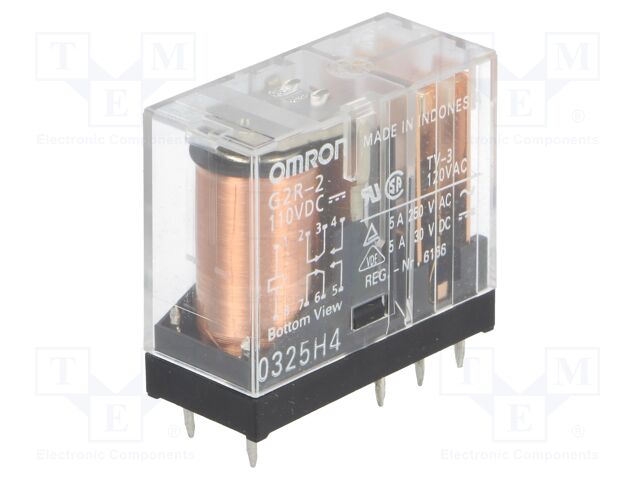

OMRON OCB G2R-2 110VDC | Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 5A
OMRON OCB G2R-2 110VDC | Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 5
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-2 110VDC | Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 5A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 4e94e2b48da74b63029c410f6deccf64. |
| jsonUrlData2 | 51f5bd1114325aeb1bac |
| keywords | OMRON OCB, G2R-2 110VDC, G2R-2-110DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2R-2 110VDC |
| qtyInStock | 0 |
| SKU | G2R-2-110DC |
| snippet | OMRON OCB G2R-2 110VDC | Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 5 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 4.64 |
| tierPrice2 | 4.22 |
| tierPrice3 | 3.08 |
| tierPrice4 | 2.91 |
| tierPrice5 | 2.74 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 110V DC |
| Contact current max | 5A |
| AC contacts rating @R | 5A / 250V AC |
| DC contacts rating @R | 5A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature, |
| Mounting | PCB |
| Coil resistance | 18.86k? |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 50m? |
| Terminal pitch | 5mm |
| Coil current | 5.3mA |
| Enclosure description | standard seal |
| Leads | for PCB |
| Related items | PODST-3 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-2-110DC | 1 | 1 | 1 @ $4.64, 5 @ $4.22, 25 @ $3.08, 100 @ $2.91, 500 @ $2.74 |
