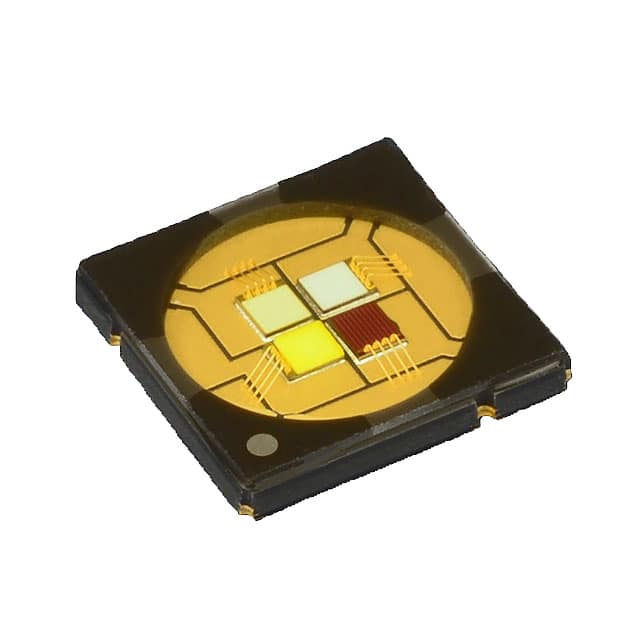

LZ4-04MDPB-0000 OSRAM SYLVANIA Inc. | Optoelectronics | DigiKey

LED Lighting Color series Red, Green, Blue, White - Cool (RGBW) 624nm Red, 525nm Green, 454nm Blue, 6500K White 2828 (7070 Metric)

OSRAM SYLVANIA Inc. . LZ4-04MDPB-0000

Attributes

Brand name, Manufacturer name, Manufacturer, MfrOSRAM SYLVANIA Inc.
DimensionUnitm
Extra Product NameLZ4-04MDPB-0000 OSRAM SYLVANIA Inc. | Optoelectronics | DigiKey
atoms, moq, multiple1
extraShipping, qtyInStock0
height0.0010668000000000001
height_AttribHeight - Seated (Max)
length624.0
length_AttribWavelength
MPNLZ4-04MDPB-0000
SKU5880531
CategoryOptoelectronics
SeriesLuxiGen?
PackageTape & Reel (TR)
Part StatusObsolete
ColorRed, Green, Blue, White - Cool (RGBW)
Wavelength624nm Red, 525nm Green, 454nm Blue, 6500K White
Current - Test1A Red, 1A Green, 1A Blue, 1A White
Voltage - Forward (Vf) (Typ)2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test50 lm/W Red, 62 lm/W Green, 93 lm/W White
Current - Max2.5A Red, 3A Green, 3A Blue, 3A White
Luminous Flux @ Current/Temperature115lm Red, 220lm Green, 1250mW Blue, 298lm White
Temperature - Test25?C
Viewing Angle110?
Mounting TypeSurface Mount
Package / Case2828 (7070 Metric)
Supplier Device PackageSMD
Size / Dimension0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)0.042" (1.06mm)
Thermal Resistance of Package0.9?C/W

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key588053111
iodPartsLZ4-04MDPB-000011
Digi-Key602207811
