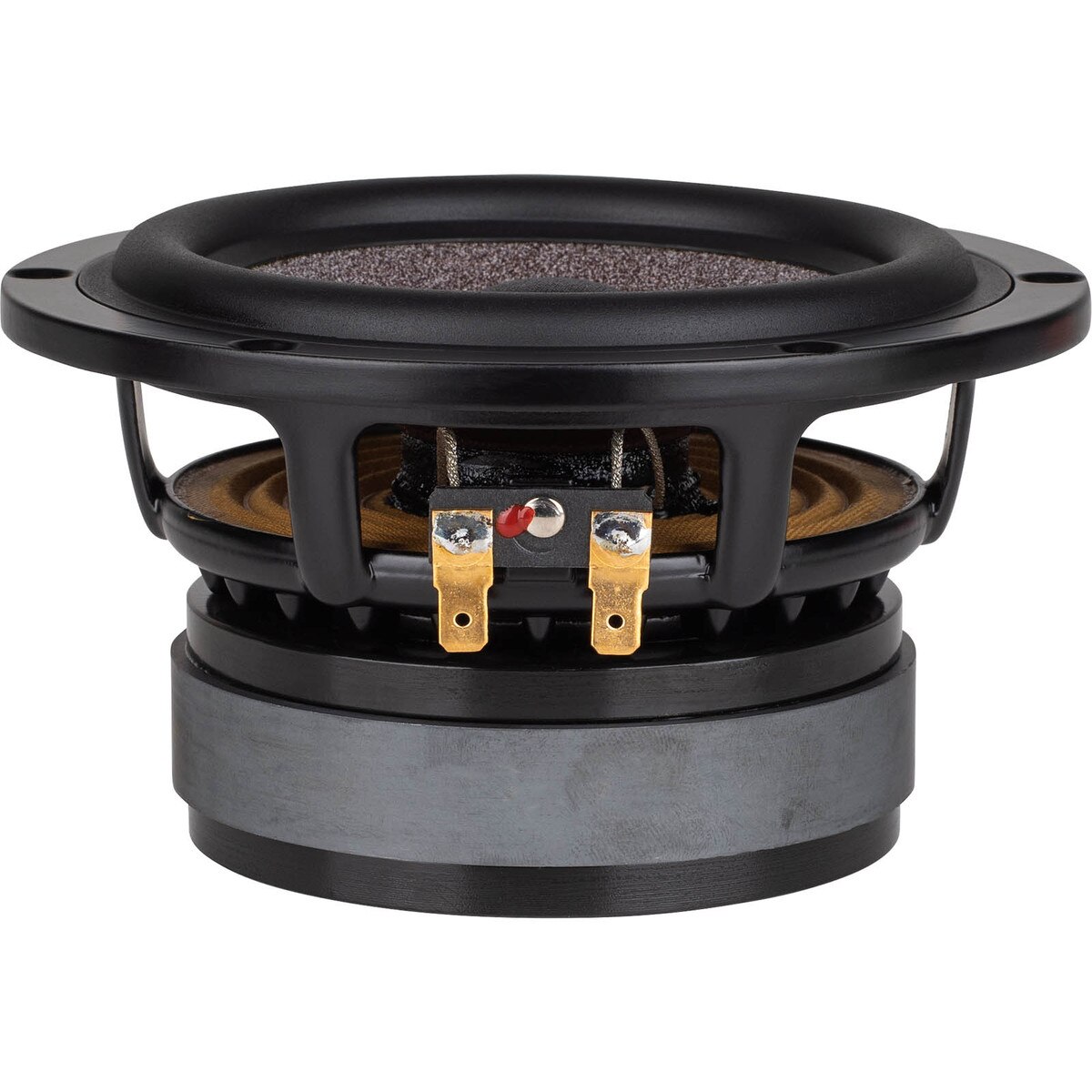

Ciare HWG130-4 5" Woofer 4 Ohm

Ciare HWG130-4 5" Woofer 4 Ohm - Part Number: 293-136 by Ciare.

Ciare . HWG130-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare HWG130-4 5" Woofer 4 Ohm
UPC848864073163
Weight4.3
WeightUnitlbs
depth, length3.03
diameter, height, width5.75
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelHWG130-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-136
snippetCiare HWG130-4 5" Woofer 4 Ohm - Part Number: 293-136 by Ciare.
Unit of MeasureEach
Nominal Diameter5"
Bolt Circle Diameter5.33
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance4?
Frequency Response45 to 7,000Hz
Sensitivity90.5dB 2.83V/1m
Voice Coil Diameter1.5"
Resonant Frequency (Fs)40Hz
DC Resistance (Re)2.7?
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
BL Product (BL)5T?m
Diaphragm Mass Inc Airload (Mms)12.8g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)87cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter5.75"
Baffle Cutout Diameter4.61"
Depth3.03"
# Mounting Holes6
Sealed Volume0.07ft?
Sealed F396.9Hz
Vented Volume0.15ft?
Vented F363.2Hz
