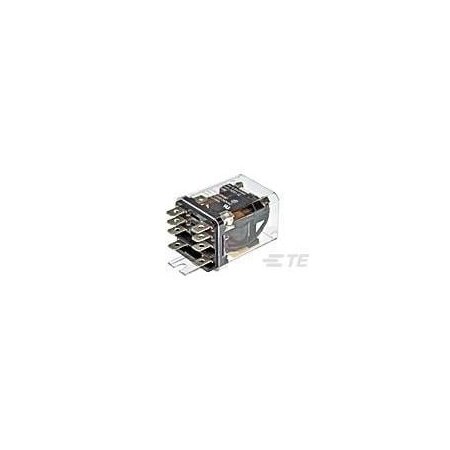

Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.1A (Coil), 12Vdc (Coil), 1200Mw (Coil), 20A (Contact), 28Vdc (Contact), Dc Input, Ac/Dc Output, Panel Mount
Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.1A (Coil), 12Vdc (Coil), 1200Mw (Coil), 20A (Contact), 28Vdc (Contact), Dc Input, Ac/Dc Output, Panel Mount
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Potter-Brumfield |
|---|---|
| CategoryId, CategoryIdL4 | 18030 |
| CategoryIdL1 | 23 |
| CategoryIdL2 | 17009 |
| CategoryIdL3 | 4524 |
| CategoryL1 | Electrical Supplies |
| CategoryL2 | Industrial Control & Automation |
| CategoryL3 | Electrical Relays |
| CategoryL4 | Power Relays |
| DimensionUnit | inch |
| GTIN, UPC | None |
| WeightUnit | lbs |
| height | 1.405 |
| height_Attrib | Body Height - Relay |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 1.97 |
| length_Attrib | Body Depth - Relay |
| moq, multiple, tierMinQty1 | 1 |
| MPN | KUHP-11D51-12 |
| qtyInStock, qtyInStockOverride | 0 |
| qtySource | qtyInStockOverride |
| SKU | G805866686 |
| snippet | Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.1A (Coil), 12Vdc (Coil), 1200Mw (Coil), 20A (Contact), 28Vdc (Contact), Dc Input, Ac/Dc Output, Panel Mount |
| tierPrice1 | 86.07 |
| url | https://www.zoro.com/potter-brumfield-powersignal-relay-2-form-c-dpdt-momentary-01a-coil-12vdc-coil-1200mw-coil-20a-kuhp-11d51-12/i/G805866686/ |
| width | 1.531 |
| width_Attrib | Body Width - Relay |
| Body Height - Relay | 1.405 in |
| Body Depth - Relay | 1.97 in |
| Body Width - Relay | 1.531 in |
| Item - Relay | KUHP Series Panel Relay |
| Coil Volts | 12V DC |
| Contact Form - Relay | 2 Form C (CO) |
| Power Consumption - Relay | 1200 mW |
| Contact Material | AgCdO |
| Number of Poles | 2 |
| Features | UL Coil Insulation Class B |
| Dielectric Voltage | 2000 Vrms Adjacent Contacts; 3750 Vrms Coil and Contact; 1200 Vrms Open Contacts |
| Contact Voltage Rating | 240V AC |
| Contact Limiting Breaking Current, Contact Limiting Short-Time Current, Contact Rating, Contact Limiting Making Current, Contact Limiting Continuous Current | 20A |
| Mounting Type | Bracket, Panel Mount |
| Switching Current | 300mA @ 12V |
| Coil Type | Monostable, DC |
| Protection Category | RTI |
| Operating Temp Range | 50 to 70?C |
| Coil Resistance | 120 ? |
| Terminal Type | Quick Connect, Solder |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G805866686 | 1 | 1 | 1 @ $86.07 |
