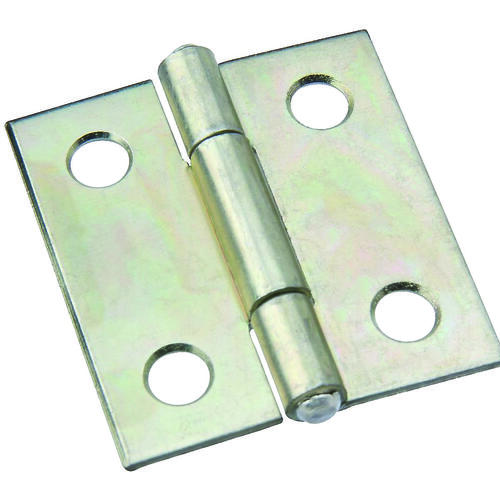

National Hardware N146035 518 1-1/2" Non Removable Pin Hinge Zinc Plated Finish

HINGE NRW ZINC PLATED 1-1/2IN 518. Swaged for mortise installations. Manufactured from cold-rolled steel, with non-removable steel pin. Tight pin to allow for left or right hand applications. Boxed loose.

National Hardware . N146035

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerNational Hardware
CategoryIdL3Door Hinges
CategoryL1Windows and Door Hardware
CategoryL2Screen, Patio, Storm Door and Window Hardware
DimensionUnitinch
Extra Product NameNational Hardware N146035 518 1-1/2" Non Removable Pin Hinge Zinc Plated Finish
Weight0.040
WeightUnitlbs
Weight_AttribEach Weight
atoms, moq, multiple, tierMinQty11
diameter, height0.197
extendedQty, qtyInStock0
height_AttribMounting Hole Diameter
length, width1.5
length_AttribLength
MPNN146035
qtySourceupdateFromUrlEntry
tierPrice11.66
width_AttribFrame leaf width
FinishZinc
DesignNarrow Hinges
MaterialAluminum/Cold Rolled Steel
Length, Frame leaf width, Door Leaf Width1-1/2"
Number of Holes, Number of Mounting Holes4
Removable Pin, Hazardous MaterialNo
Number in Package1 pk
Packaging TypeBoxed
Defective CodeA
Each Weight0.040 LB
ReturnableYes
Safe Working Load (SWL)7 lbs.
VelocityX
Product TypeCabinet Hinge
Pin Diameter0.106"
Frame Leaf Thickness, Door Leaf Thickness0.045"
Number of Knuckles3
NomenclatureN146-035 HINGE NRW ZN PLT 1-1/
Hole Spacing1.046"
Dimensions1-3/8 in L x 1-1/2 in W
Mounting Hole Diameter0.197"
Weight Capacity7 lb
Mounting TypeMortise
Orientation TypeLeft Right
Pin TypeTight Non-Removable
