ZXM62N03GTA Diodes Incorporated | Discrete Semiconductor Products | DigiKey

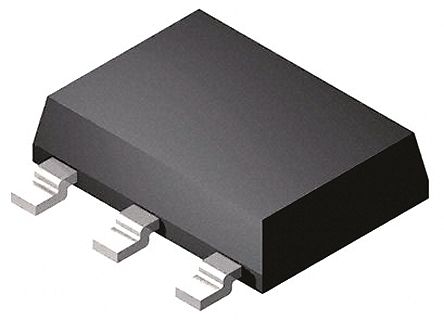

N-Channel 30 V 3.4A (Ta), 4.7A (Tc) 2W (Ta) Surface Mount SOT-223-3

Diodes Incorporated . ZXM62N03GTA

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Mfr, Brand, Label, Man, Publisher, StudioDiodes Incorporated
Extra Product NameZXM62N03GTA Diodes Incorporated | Discrete Semiconductor Products | DigiKey
atoms, moq, multiple1
extraShipping, qtyInStock0
MPN, Part Number, PartNumberZXM62N03GTA
SKU1767228
Product Group, ProductGroupBISS
CategoryDiscrete Semiconductor Products
Series, FET Feature-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25?C3.4A (Ta), 4.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs110mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id1V @ 250?A
Vgs (Max)?20V
Power Dissipation (Max)2W (Ta)
Operating Temperature-55?C ~ 150?C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Drain to Source Voltage (Vdss)30V
Gate Charge (Qg) (Max) @ Vgs9.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds380pF @ 25V
AsinB00LUSKSBC B00LUSKUV0 B00LUSKWD6 B00LUSKYIO B00M1I6WXI
Case, PackageQuantity1 10 100 5 50
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 306506011 306831011 306910011
CatalogNumberListMS 522-ZXM62N03GTA X1 MS 522-ZXM62N03GTA X10 MS 522-ZXM62N03GTA X100 MS 522-ZXM62N03GTA X5 MS 522-ZXM62N03GTA X50
FeatureManufacturer: Diodes Incorporated Product Category: MOSFET RoHS: Transistor Polarity: N-Channel Drain-Source Breakdown Voltage: 30 V Gate-Source Breakdown Voltage: +/- 20 V Continuous Drain Current: 4.7 A Drain-Source On Resistance: 150 mOhms Configuration: Single Dual Drain Maximum Operating Temperature: + 150 C Mounting Style: SMD/SMT Package / Case: SOT-223 Packaging: Reel Fall Time: 6.4 ns
ProductTypeNameELECTRONIC_COMPONENT
Size1 10 Piece 100 Piece 5 Piece 50 Piece
TitleMOSFET 30V N-Chnl HDMOS (1 piece) MOSFET 30V N-Chnl HDMOS (10 pieces) MOSFET 30V N-Chnl HDMOS (100 pieces) MOSFET 30V N-Chnl HDMOS (5 pieces) MOSFET 30V N-Chnl HDMOS (50 pieces)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key176722811
Allied Electronics7055075011
Onlinecomponents.comZXM62N03GTA150011 @ $0.70, 100 @ $0.45, 1000 @ $0.35, 2000 @ $0.29, 10000 @ $0.28, 25000 @ $0.27, 50000 @ $0.27
iodPartsZXM62N03GTA11
HotendaH18178151100011 @ $0.34
RS Delivers823-316311
Future Electronics1365022100010001000 @ $0.27, 3000 @ $0.26
Digi-Key99187711
Digi-Key176726411
