Order YA31L2TC3890 by Burndy Copper Compression Lug, 2 Hole, 90 Degree, (Pack of 10 pcs) - US Mega Store

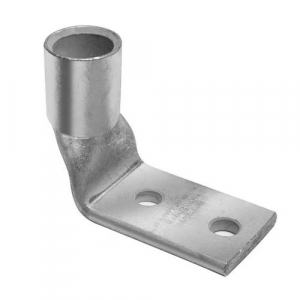

Burndy, YA31L2TC3890, Copper Compression Lug, 2 Hole w/ Inspection Window, 350 Kcmil, 3/8" Stud, 1" Stud Hole Spacing, Short Barrel, Tin - Electro Plated, 90 degree.

Burndy . YA31L2TC3890

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA31L2TC3890
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA31L2TC3890 by Burndy Copper Compression Lug, 2 Hole, 90 Degree, (Pack of 10 pcs) - US Mega Store
diameter, length0.88
height1.98
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA31L2TC3890
qtyInStock-2
qtySourceFieldMap
snippetBurndy, YA31L2TC3890, Copper Compression Lug, 2 Hole w/ Inspection Window, 350 Kcmil, 3/8" Stud, 1" Stud Hole Spacing, Short Barrel, Tin - Electro Plated, 90 degree.
tierPrice144.93
width1.29
width_AttribDimension - Pad Width inch
Color CodeRed
Connector TypeTerminal
Die Index18;324
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction1-1/16 in
Dimension - B Length inch1.06 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch3/8
Dimension - Height inch1.98 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm61 mm
Dimension - Length Overall inch2.41 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.88 in
Dimension - Pad Width inch1.29 in
Dimension - Strip Length inch1-3/16
Dimension - Z inch0.42 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size350 (91) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range350 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA31L2TC38901-211 @ $44.93
