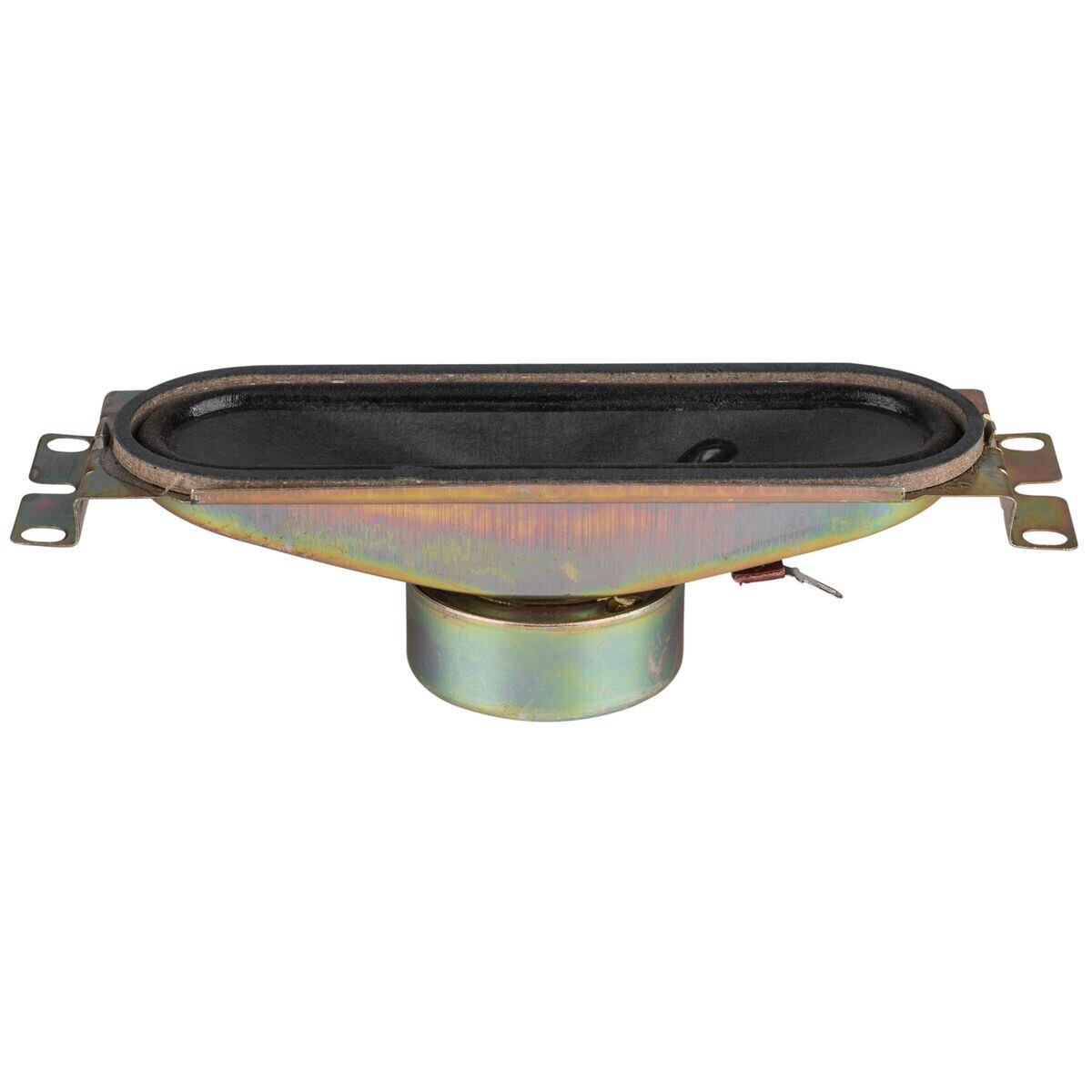

RCA YDT513-01 1-3/4" x 5" Paper Cone Full-Range Speaker

RCA YDT513-01 1-3/4" x 5" Paper Cone Full-Range Speaker. Part Number: 289-2196 by Factory Buyouts.

Factory Buyouts . YDT513-01

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameRCA YDT513-01 1-3/4" x 5" Paper Cone Full-Range Speaker
UPC848864048208
Weight0.32
WeightUnitlbs
depth, length1.625
diameter, height, width16.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelYDT513-01
qtyInStock0
SKU, Part Number289-2196
snippetRCA YDT513-01 1-3/4" x 5" Paper Cone Full-Range Speaker. Part Number: 289-2196 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8?
Frequency Response200 to 12,000Hz
Sensitivity80.07dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)214Hz
DC Resistance (Re)7.78?
Voice Coil Inductance (Le)0.15mH
Mechanical Q (Qms)2.98
Electromagnetic Q (Qes)5.68
Total Q (Qts)1.95
Compliance Equivalent Volume (Vas)0.013ft?
Mechanical Compliance of Suspension (Cms)0.253mm/N
Diaphragm Mass Inc Airload (Mms)2.107g
Surface Area of Cone (Sd)32.17cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter16" x 1.75"
Baffle Cutout Diameter4.75" x 1.5"
Depth1.625"
# Mounting Holes4
