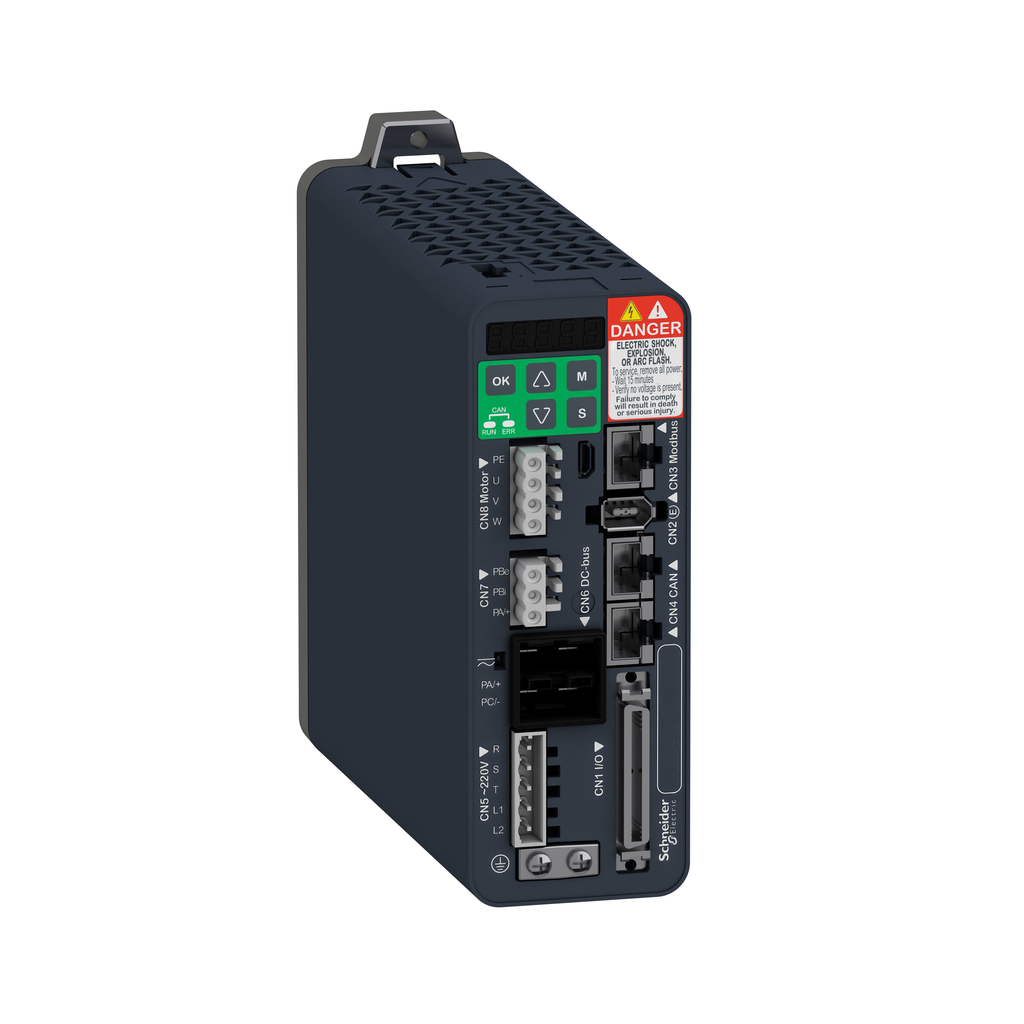

motion servo drive, Lexium 28, sercos, single and three phase 200...230 V, 1 kW | Mayer Electric

SQUARE D . SQDLXM28SU10M3X

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Namemotion servo drive, Lexium 28, sercos, single and three phase 200...230 V, 1 kW | Mayer Electric
UPC, MPN, SKUSQDLXM28SU10M3X
Weight1.2
WeightUnitkg
Weight_AttribNet Weight
depth, length170.0
height150.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-motion-servo-drive-Lexium-28-sercos-single-and-three-phase-200-230-V-1-kW-SQDLXM28SU10M3X
jsonUrlData2f8de6acc-b7ef-4557-9e6c-aeea005673d6
length_AttribDepth
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.0
width55.0
width_AttribWidth
Line Current8.5 A 176.3 % 220 V, single phase || 8.5 A 155.5 % 220 V, three phase
Range Of ProductLexium 28
Format Of The Drivecompact housing
Product Or Component Typemotion servo drive
Device Short NameLXM28S
[Us] Rated Supply Voltage220 V - 10...15 %)three phase || 220 V - 20...15 %)single phase
Network Frequency47.5...63 Hz
Type Of Cableshielded motor cable 0-55 ?C) copper
Discrete Input Logic, Discrete Output Logicpositive or negative CN1)
Height150 mm
Output Current 3S Peak, Output Current 3S Peak 2, Output Current 3S Peak 321 A 220 V
Electrical Isolationbetween power and control
Product Compatibilityservo motor BCH2 130 mm, 1 1000 W || servo motor BCH2 100 mm, 1 1000 W || servo motor BCH2 130 mm, 2 900 W || servo motor BCH2 130 mm, 4 850 W
Status Led1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
Discrete Output Number4 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
Discrete Input Voltage24 V DC logic
Transmission Rate9600 bauds...115200 bauds (automatic detection) 100-100 m
Discrete Output Voltage12...24 V DC
Discrete Input Number8 programmable CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
Signalling Functionservo status and fault codes five 7-segment display units
MarkingCE || cULus || CSA
Connector TypeRJ45 CN3) || RJ45 CN4)
Phasesingle phase || three phase
Net Weight1.2 kg
Communication InterfaceModbus, Integrated || SERCOS III, Integrated
Electrical Connectionspring terminal 1.3...1.5 mm?, AWG 16 L1-L2) || spring terminal 1.3...1.5 mm?, AWG 16 R, S, T) || spring terminal 1.3...1.5 mm?, AWG 16 U, V, W, PE) || spring terminal 1.3...1.5 mm?, AWG 16 PA/+, PBe)
Switching Frequency16 kHz
Type Of Coolingintegrated fan
Supply Voltage Limits200-255 V three phase || 170-255 V single phase
Method Of Accessslave
Control Signal Typeservo motor encoder feedback CN2
Safety FunctionSTO (safe torque off), Integrated
Operating Positionvertical
Emc Filterwithout EMC filter
Maximum Leakage Current4.5 mA
Width55 mm
Overvoltage CategoryIII
Depth170 mm
Nominal Power1 kW 220 V 16 kHz
Continuous Output Current7 A 16 kHz
Continuous Power1000 W 220 V
Supply Frequency50/60 Hz - 5...5 %
Rohs Exemption Information, Mercury Free, Pvc Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1409001EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1409001EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCE || CSA || cULus
Ambient Air Temperature For Operation0-55 ?C
StandardsEN/IEC 61800-5-1
Electromagnetic Compatibilityconducted emission level 3category C3 EN/IEC 61800-3
Vibration Resistance3M4 3 mm 9-200 Hz)IEC 60721-3-3
Shock Resistance10 gn, type I IEC 60721-3-3
Ambient Air Temperature For Storage-25-65 ?C
Relative Humidity5-95 % without condensation
Ip Degree Of ProtectionIP20
