Grundfos 96081906 CRN 1S-21 A-FGJ-G-V-HQQV 3PH 1.5HP TEFC 6 - MROSupply.com

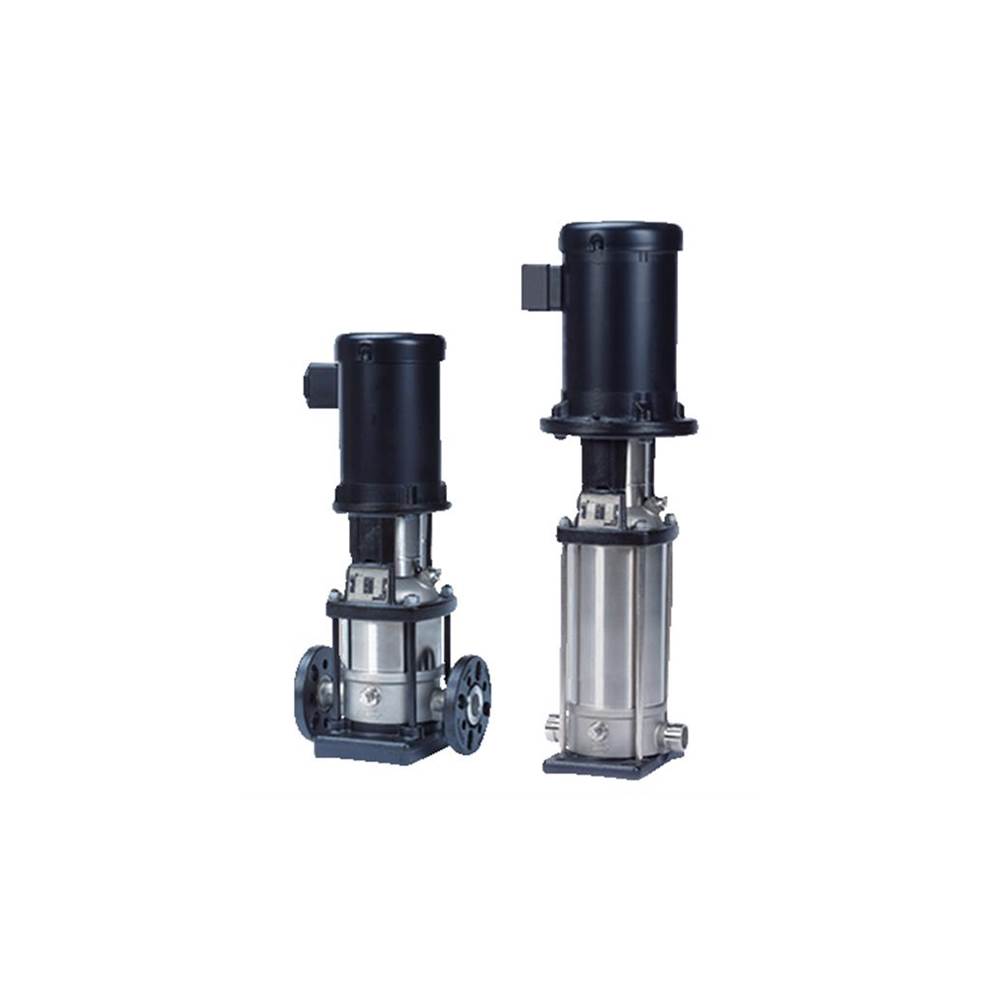

The 96081906 is produced by Grundfos and is described as a Grundfos 96081906 CRN 1S-21 A-FGJ-G-V-HQQV 3PH 1.5HP TEFC 6

Grundfos . 96081906

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
Extra Product NameGrundfos 96081906 CRN 1S-21 A-FGJ-G-V-HQQV 3PH 1.5HP TEFC 6 - MROSupply.com
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, Part Number, Product no, Keyword, PartNumber, Part_number, Sku96081906
qtyInStock, Number of reduced-diameter impellers0
SKU5025666
snippetThe 96081906 is produced by Grundfos and is described as a Grundfos 96081906 CRN 1S-21 A-FGJ-G-V-HQQV 3PH 1.5HP TEFC 6
tierPrice12824.61
Product GroupBISS
Max ambient temperature (F)140
Temperature range (F)-4 - 194
Density (lb/ftBi)62.29
Rated voltage3 x 208-230YY/460Y V
HP1.5
Max pressure (psi)363
Pipe connection1 1/4 in
Stages, Impellers21
Flange size, Flange size for motor56C
Rate flow (gpm)4.84
Selected liquid temperature (?C)20
Density998.2 kg/m?
Rated speed3440-3480 RPM
Power (P2) required by pump, Rated power - P21.1 kW
Mains frequency60 Hz
Pump version, Model, Material codeA
Pumped liquidWater
Product nameCRN 1S-21 A-FGJ-A-V-HQQV
Pressure rating for connectionPN 25
Motor efficiency at 3/4 load83.5-81.0 %
Rated head120 m
IE Efficiency classNEMA Premium / IE3 60Hz
Insulation class (IEC 85)F
Size of outlet connection, Size of inlet connectionDN 25/32
Temperature (?C)25 bar / -20
Max pressure at stated temp (?C)25 bar / 90
Motor no98976607
ApprovalsCURUS
Starting current720 %
Rated flow1.1 m?/h
Full load SF current5,1-4,95/2,48 A
Motor standardNEMA
Motor efficiency at full load84.1-83.5 %
Base, ImpellerStainless steel
Shaft seal arrangementSingle
Pump orientationVertical
Type of connectionDIN / ANSI / JIS
Maximum operating pressure (bar)25
Low NPSHN
Flange rating inlet300 lb
Connect codeFGJ
Curve tolerance2012 3B
Cos phi - power factor0.84-0.78
Service factor1.15
Number of poles2
Pump speed on which pump data are based3466 RPM
Maximum head179.5 m
BearingSIC
Liquid temperature range (?C)-20 - 90
Motor type80CA
Code for shaft sealHQQV
CoolingTEFC
Code for rubberV
Maximum ambient temperature (?C)60
Rated current4,45-4,3/2,16 A
Motor efficiency at 1/2 load82.0 %
Enclosure class (IEC 34-5)55 Dust/Jetting
ASIN, AsinB01MUIQJEX
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Bullet_pointBrand: Grundfos Category: HVAC Free Shipping on this item! Product Number: 96081906 U-FGJ-G-V-HQQV 3ph 1.5HP TEFC 6 96081906
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011
ClassificationId720590011
DisplayNameHVAC Equipment
FeatureBrand: Grundfos
Height192 29
IsDeadAsinTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGrundfos 96081906
Item_type_keywordindustrial-hvac-components
Linkhttps://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL.jpg
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameMECHANICAL_COMPONENTS
Product_descriptionGrundfos 96081906. U-FGJ-G-V-HQQV 3ph 1.5HP TEFC 6 96081906
Product_site_launch_date2017-02-04T23:18:08.392Z
URLhttp://ecx.images-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg
Unitspixels
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5025666111 @ $2824.61
AmazonTPB01MUIQJEX111 @ $3805.21
pumpproducts.com960819061(Usually Ships 7-10 Days)11 @ $4460.00
Edge Supply960819061-211 @ $3911.00
