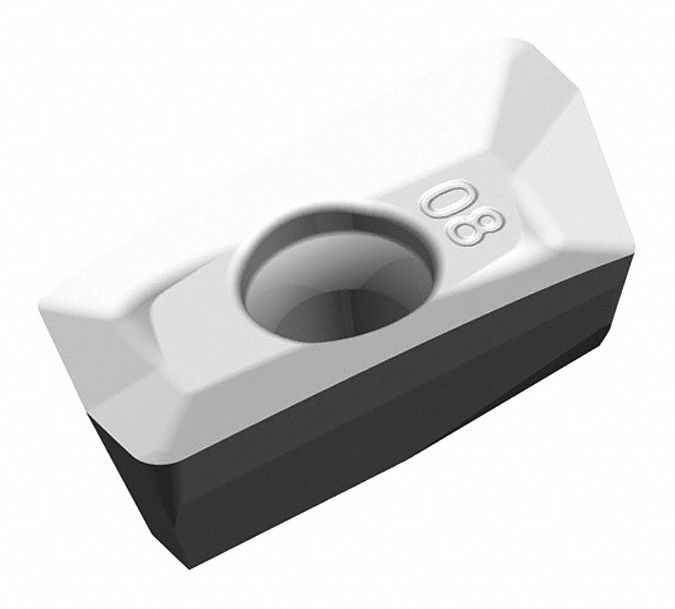

MILLING INSERT,CARBIDE,PARALLELOGRAM

WIDIA . XDCT1710RALP WN25PM

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWIDIA
DimensionUnitmm
Extra Product NameMILLING INSERT,CARBIDE,PARALLELOGRAM
UNSPSC23172009
Weight0.176
WeightUnitlbs
diameter, height4.4
height_AttribThrough Hole Inside Dia.
length16.3
length_AttribCutting Edge Length
moq, multiple, tierMinQty11
MPNXDCT1710RALP WN25PM
originalCurrency{'currency': 'CAD', 'tierPrice1': '31.38'}
qtyInStock0
SKUWID6001238
tierPrice122.775792279999997
width9.59
width_AttribWidth
ItemMilling Insert
Corner Radius4.00mm
SeriesVSM17
ISO NumberXDCT170440PEFRALP
Chip-BreakerYes
Chip-Breaker StyleOn One Side
Cutting ApplicationFinishing
Cutting Edge Length16.30mm
Finish - MachiningTiB2
For Use WithVSM17 Shoulder Mill
Included Angle75 Degrees
Insert Size1710
Lead Angle90 Degrees
Material - MachiningCarbide
Mounting Hole Dia0.173"
Number of Cutting Edges2
RakePositive
Through Hole Inside Dia4.40mm
Inscribed Circle0.377"
Thickness0.1920 in
ANSI CodeXDCT1710RALP
Primary Material ApplicationAluminum, Brass, Bronze, Copper, Magnesium
Chip-Breaker CodeALP
Clearance Angle15 Degrees
Cutting DirectionRight Hand
FeaturesALP is the First Choice for Roughing and Finishing of Aluminium Alloy
Hole Type40 Degrees to 60 Degrees Countersink Hole
Insert Holding Type, Mounting StyleScrew Clamp
Insert StyleXDCT
Manufacturer GradeWN25PM
Measurement SystemMetric
Primary Material Application ISO CodeN
ShapeParallelogram
Width9.59mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWID6001238111 @ $22.78
