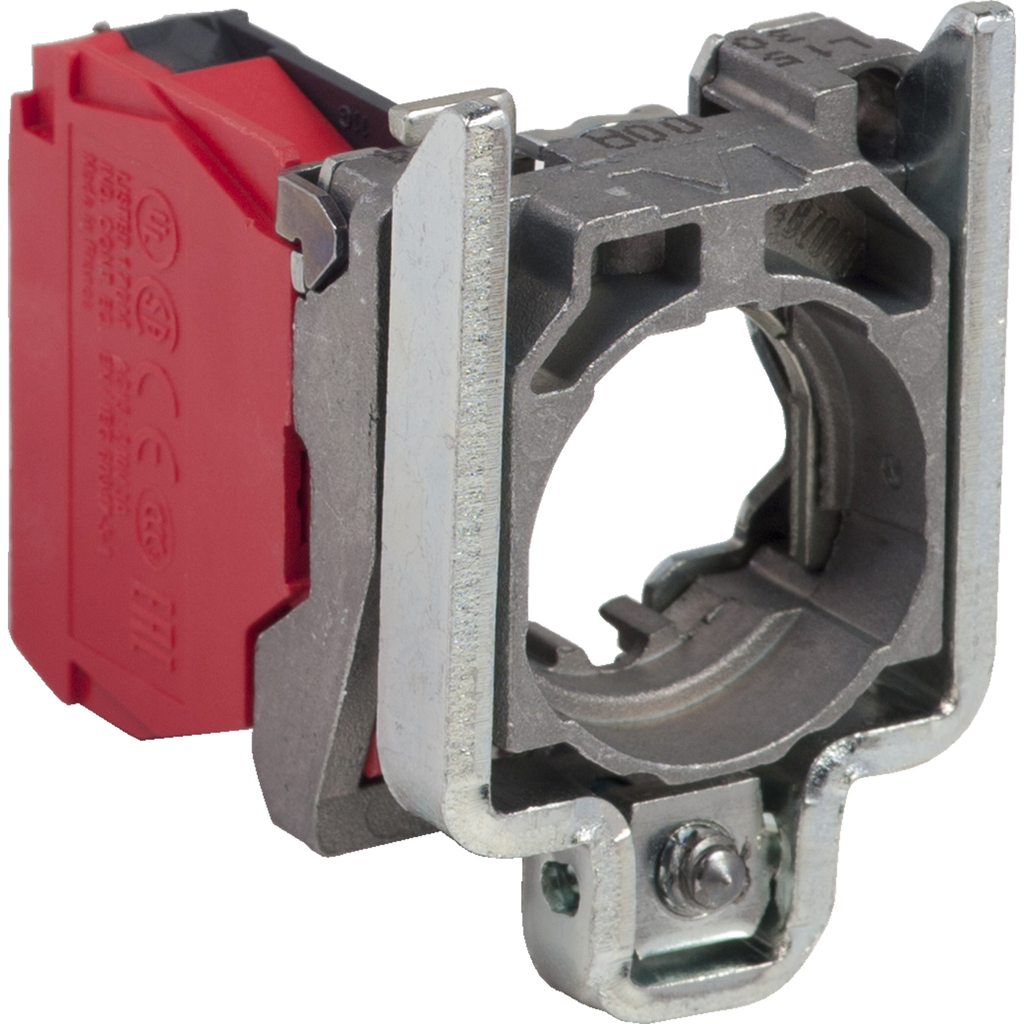

22mm push button, Harmony ZB4, metal base, contact block with collar, 1NC, spring clamp terminals | Mayer Electric

SQUARE D . SQDZB4BZ1026

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Name22mm push button, Harmony ZB4, metal base, contact block with collar, 1NC, spring clamp terminals | Mayer Electric
UPC3606480502392
Weight0.064
WeightUnitkg
Weight_AttribNet Weight
height47.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-22mm-push-button-Harmony-ZB4-metal-base-contact-block-with-collar-1NC-spring-clamp-terminals-3606480502392
jsonUrlData26d82487d-90f6-4e00-bbaf-ade40063c375
length37.0
length_AttribCad Overall Depth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDZB4BZ1026
qtyInStock0
tierPrice133.44
width30.0
width_AttribCad Overall Width
Contacts Type And Composition1 NC
Range Of ProductHarmony XB4
Contact Operationslow-break
Contact Block Typesingle
Product Or Component Typecomplete body/contact assembly
Device Compositioncontact block || fixing collar
Device Short NameZB4
Fixing Collar Materialzamak
Head Typestandard
Warranty18 months
Contacts Usagestandard contacts
Terminals Description Iso N?1(11-12)NC
[Ui] Rated Insulation Voltage250 V 3)EN 60947-1
Short-Circuit Protection4 A cartridge fuse gG EN/IEC 60947-5-1
Operating Torque0.05 N.m NO changing electrical state
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialgold flashed (Ag/Ni/Au) contacts
Mechanical Durability5000000 cycles
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Cad Overall Width30 mm
Cad Overall Depth37 mm
Net Weight0.064 kg
[Uimp] Rated Impulse Withstand Voltage4 kV EN 60947-1
Cad Overall Height47 mm
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsUL || GL || DNV || CSA || LROS (Lloyds register of shipping) || BV
Ambient Air Temperature For Operation-25-70 ?C
Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Protective TreatmentTH
Ip Degree Of ProtectionIP20 IEC 60529
