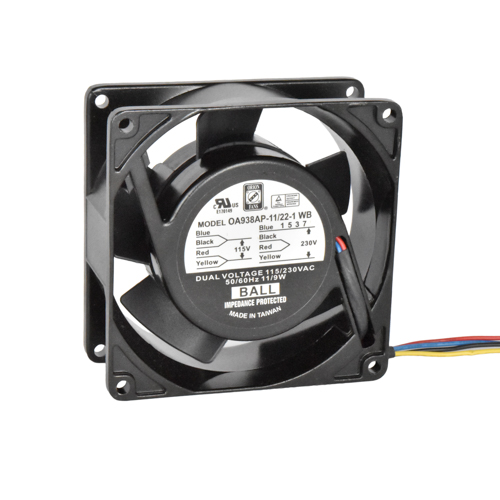

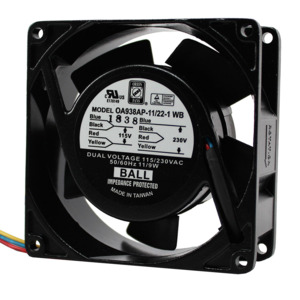

OA938AP-11/22-1WB Orion Fans | Fans, Thermal Management | DigiKey
AC Fan Axial Ball Bearing 115V/230V 80V to 260V 50CFM 32dB 92 X 92 X 38.5mm High Speed
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OA938AP-11/22-1WB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OA938AP-11/22-1WB |
| qtyInStock | 163 |
| SKU | 1053-1110-ND |
| Part Status | Active |
| Voltage - Rated | 115/230VAC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 38.50mm |
| Air Flow | 50.0 CFM (1.40m?/min) |
| Static Pressure | 0.220 in H2O (54.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage |
| Noise | 32.0dB |
| Power (Watts) | 9.00W |
| RPM | 3100 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection, Weight, Current Rating (Amps) | - |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Voltage Range | 80 ~ 260VAC |
| Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 60000 Hrs @ 40?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1110-ND | 1 | 163 | 1 | |
| OA938AP-11/22-1WB | 1 | 20 | 1 | 1 @ $21.45, 5 @ $20.97, 10 @ $19.95, 25 @ $18.55, 50 @ $17.73, 100 @ $16.82, 250 @ $16.43, 500 @ $16.21 | |
| RS Delivers | 2508492429 | 1 | 1 | ||
 Carlton Bates Company | 40308486110 | 1 | 1 | 1 @ $0.00 | |
 swatee.com | OA938AP-11/22-1WB | 1 | 1 | 1 | 1 @ $35.78 |
 Newark | 89AH2487 | 1 | 2 | 1 | 1 @ $25.90, 5 @ $24.09, 10 @ $23.25, 25 @ $22.42, 50 @ $21.16, 100 @ $18.94 |
 Arrow | OA938AP-11/22-1WB | 1 | 37 | 1 | 1 @ $14.03, 10 @ $14.03, 100 @ $14.03, 1000 @ $14.03, 10000 @ $14.03 |
| Mouser | 670-OA938AP11221WB | 1 | 7 | 1 | 1 @ $23.11, 10 @ $21.11, 100 @ $17.50, 1000 @ $17.23, 10000 @ $17.23 |
| OA938AP-11/22-1WB-ORIN | 1 | 1 | 1 @ $27.16 | ||
| 10141345 | 1 | 40 | 1 | 1 @ $23.05 | |
| us.rs-online.com | 70103684 | 1 | 6 | 1 | 1 @ $24.27, 10 @ $21.83, 25 @ $21.25, 50 @ $19.85, 100 @ $18.31, 250 @ $17.73 |
