Hamilton

Hamilton . R-WHK-4HNY

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA03
UnitOfMeasureEA
Weight5
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height, length, width6
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Number of Wheels1
MPNR-WHK-4HNY
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9074245
tierPrice178.00
urlhttps://www.zoro.com/hamilton-plate-caster-800-lb-load-rating-r-whk-4hny/i/G9074245/
Caster Sub-TypeRigid
Load Rating800 lb
Wheel Dia4 in
Wheel Width, Overall Wheel Width2 in
Mounting Plate Thickness1/4 in
Tire StyleTubeless
Wheel TypeFlat-Free
Load Rating Range300 to 999 lb
With Toe Plate, Includes Thread Guards, Leveling Caster, Includes Mounting Fasteners, NSF ListedNo
Swivel ConstructionKingpinless
Swivel Bearing Seal TypeSealed
Mounting Height5 5/8 in
Frame ColorBlack
For Surface TypeConcrete
Swivel RadiusNone- Rigid Caster
FeaturesDurable, High Heat, Quiet Operation, Reliable
Mounting Plate Bolt Hole PatternB
Mounting Bolt Dia3/8 in
Wheel/Tread MaterialGlass Filled Nylon
Includes Spanner Bushing, ESD Conductive, Non-MarkingYes

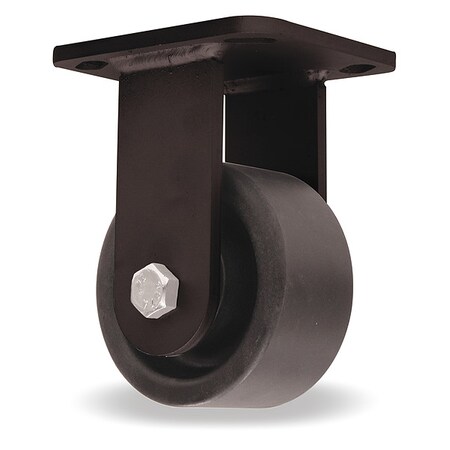

ItemHeat-Resistant Kingpinless Plate Caster
Inside Bolt Hole Spacing2-5/8 in x 3-5/8 in
Swivel Lead1 3/4 in
Operating Temperature Range-50 Degrees to 200 Degrees F
StandardsICWM
Caster Product GroupRigid Caster
TreadFlat
Core Color, Wheel/Tread ColorBrown
Wheel Core MaterialNylon
SeriesInferno
Swivel Lock TypeNo Lock Included
Caster Mounting TypePlate
Tread ShapeStandard
Wheel Bearing Material, Caster Frame MaterialSteel
Outside Bolt Hole Spacing3 in x 3 in
Mounting Plate Size4 in x 4 1/2 in
Wheel/Tread Hardness85 Shore D
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Mounting Holes4
For Axle Dia1/2 in
Swivel Raceway TypeRoller
Wheel Bearing TypePlain
Frame FinishEnamel
Wheel/Tread Hardness RatingHard
Wheel Core TypeSolid
Frame ConstructionForged
Caster Brake TypeNo Brake Included
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9074245111 @ $78.00
Grainger55HA03111 @ $96.23
