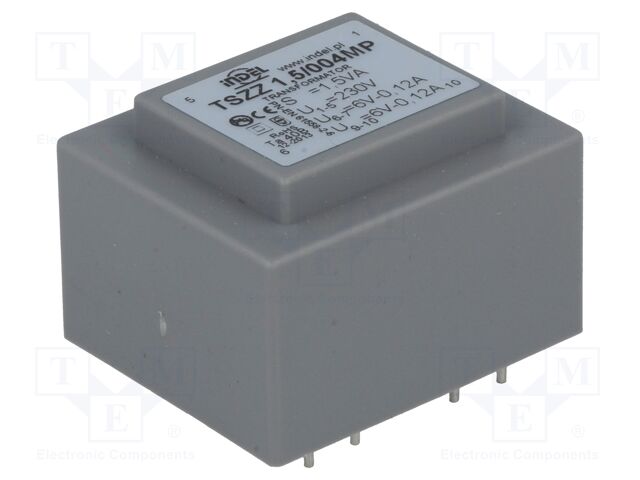

INDEL TSZZ1.5/004MP | Transformer: encapsulated; 1.5VA; 230VAC; 6V; 6V; 0.1A; 0.1A; PCB
INDEL TSZZ1.5/004MP | Transformer: encapsulated; 1.5VA; 230VAC; 6V; 6V; 0.1A; 0.1A; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INDEL |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | INDEL TSZZ1.5/004MP | Transformer: encapsulated; 1.5VA; 230VAC; 6V; 6V; 0.1A; 0.1A; PCB |
| Weight | 90 |
| WeightUnit | g |
| Weight_Attrib | Weight |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 79cc763a7ac915a50b7ab3bd374fc7e3.5 |
| jsonUrlData2 | 5dbe367ab86b83433b2d |
| keywords | INDEL, TSZZ1.5/004MP, TSZZ1.2/2X6V, Transformers and Ferrite Cores, PCB transformers |
| MPN | TSZZ1.5/004MP |
| qtyInStock | 13 |
| SKU | TSZZ1.2/2X6V |
| snippet | INDEL TSZZ1.5/004MP | Transformer: encapsulated; 1.5VA; 230VAC; 6V; 6V; 0.1A; 0.1A; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierPrice1 | 3.02 |
| tierPrice2 | 2.84 |
| tierPrice3 | 2.67 |
| tierPrice4 | 2.47 |
| Type of transformer | encapsulated |
| Power | 1.5VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 6V |
| Secondary winding current 1, Secondary winding current 2 | 0.1A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN-EN 61558 |
| Thermal class | Ta40B |
| Secondary winding terminals | 6-7, 9-10 |
| Primary winding terminals | 1-5 |
| Insulation class | II |
| A dimension | 32.3mm |
| A1 dimension | 23.6mm |
| B dimension | 27.3mm |
| B1 dimension | 20.2mm |
| C dimension | 21.8mm |
| C1 dimension | 18.2mm |
| M dimension | 20mm |
| P dimension | 5.05mm |
| Electrical insulation strength | 4kV/60s |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TSZZ1.2/2X6V | 1 | 13 | 1 | 1 @ $3.02, 5 @ $2.84, 25 @ $2.67, 100 @ $2.47 |
