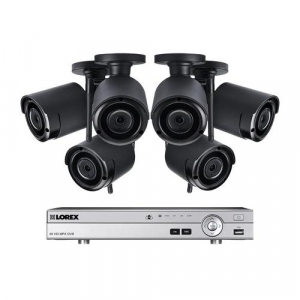

Lorex . LW1684UW

Lorex . LW1684UW

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLorex
moq, multiple, tierMinQty11
MPN, SKULW1684UW
qtyInStock-2
tierPrice1811.00
Operating SystemLinux (embedded)
PentaplexSimultaneous view, record, playback, backup & remote monitoring
Number of Channels8 Channels
Video IN8 x 1Vp-p, CVBS, 75ohms, BNC
Video OUTNo
VGA OUT, HDMI, Covert Video, Audio Play, MicrophoneYes
Audio IN, Audio OUT1 line IN (RCA)
USB Port1 at the back, 1 at the front
Alarm IN, Alarm OUT, DDNSNone
Video Output ResolutionHDMI: 3840x2160; 2560x1440; 1920x1200; 1600x1200; 1680x1050; 1920x1080; 1440x900; 1280x1024; 1280x720; 1024x768
PTZ ControlRS-485 Pelco D & P Protocol
Display Split8 ch: 1, 4, 8
Live Display Speed8 ch: 240 NTSC, 200 PAL
OSDON/OFF
System NavigationUSB mouse, IR remote controller, front panel buttons
Motion Area SettingFixed Grid 396 pixels (22x18) NTSC/PAL
Sensitivity Levels100
Firmware UpgradeAutomatic over the Internet & via USB device and Network
User AuthorityBy user group
Time SynchronizationAuto time sync by NTP server
Video CompressionH.264+
Audio CompressionG.711
Recording Resolution4K/8MP (3840x2160), 2K/4MP (2688x1520), 3MP (2304x1296), 1080p (1920x1080), 720p (1280x720), 960x480, 704x480, 352x480, 704x240, 352x240, 176x120
Recording Frame Rate4K at7fps (per ch), 4MP at15fps (per ch), 3MP/1080p/720p/960H: 30fps (NTSC)
Recording Resolution SettingPer camera for different resolutions
Recording Quality Control6 Levels
Recording ScheduleBy hour, by day, by recording mode, by motion, by channel
Pre RecordingMax. 30 seconds
Post RecordingMax. 5 Minutes
ReliabilityWatch-Dog, auto-recovery after power failure
Playback Channel8 ch: 1 / 4 / 8
Playback Speed VariableVariable Max 4x
Playback PlayersBackup Player
SearchBy Time/Date & Motion Event
Log SearchUp to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage
StorageUp to 1 HDD (SATA)
Maximum CapacityUp to 1 x 8TB
Backup MediaUSB Flash Drive & HDD
Backup File FormatDAV or ASF file
Cloud ConnectionLorex Cloud Connectivity
Supported Operating SystemsWindows, Mac OSX
Remote SoftwareClient Software (PC) & Safari (Mac)
Email NotificationText with snapshot
Instant SmartphoneiPad, iPhone, Android apps
System ConfigurationFull setup configuration over network
PortsProgrammable by user
Network ProtocolHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
Network Interface10/100-Base-TX, RJ-45
Network Bit RateMax 64Mbps
Power ConsumptionApprox. 10 Watts (no HDD included)
Supply Voltage8ch: 100VAC-240VAC, 12VDC, 2A, 50/60Hz
Unit Dimensions (W x D x H)12.8 x 10.0 x 2.2" / 325 x 255 x 55
Unit Weight (lb / kg)3.3lb / 1.5kg (without hard drive)
Operating Temperature °F / °C)14°F ~ 130°F / -10°C ~ 55°C
Humidity10 ~ 90% RH
Transmission Frequency2.4 GHz (2412MHz~2462MHz)
Transmission Power17dBm
Unobstructed Wireless Range (disc )600ft (183m) outdoor / 165ft (50m) indoor
Spread SpectrumDSSS
ModulationOFDM and CCK
Operating Humidity< 90%
Image Sensor1/2.7" Color CMOS
Supported Resolution1080p
Effective PixelsH: 1932 V: 1092
Minimum Illumination0 Lux with IR Illumination
AGCOn
AES Speed1/60 (1/50) ~ 1/62,500
IR LEDs18 pieces
Night Vision Range115ft (35m) / 75ft (23m)
Environmental RatingIP66 (Indoor / Outdoor)
Lens / Lens Type2.8mm F2.0
Field of View (Horizontal)118° (D) 85° (H)
Power Supply12Vdc +/- 10%
Operating Temperature-4° ~ 122°F / -20° ~ 50°C
Dimensions (W x D x H)3.2 x 6.1 x 5.6" / 82 x 155 x 143mm (with sunshade and antenna)
Weight0.34 kg / 0.7 lbs
Receiving Sensitivity-88 dBm
Supported Resolutions1080p up to 10fps
TerminationBNC Video/CVI format
Image CompressionH.264
Environmental Rating (disc )IP66

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotLW1684UW1-211 @ $811.00
