Order YA34L2TC38FX45 by Burndy Copper Tubing Compression Lug, 2 Holes, (Pack of 10 pcs) - US Mega Store

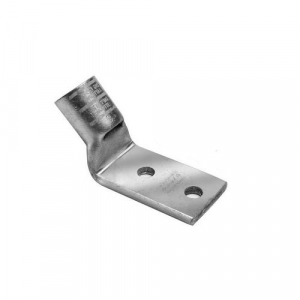

Burndy, YA34L2TC38FX45, Copper Tubing Compression Lug, 2 Holes With Inspection Window, 350 Kcmil Flex, 600v-35kv, 3/8" Stud, Standard, Blue.

Burndy . YA34L2TC38FX45

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA34L2TC38FX45
ConditionNEWCONDITION
DimensionUnitinch
Extra Product NameOrder YA34L2TC38FX45 by Burndy Copper Tubing Compression Lug, 2 Holes, (Pack of 10 pcs) - US Mega Store
diameter, length1.06
height2.25
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA34L2TC38FX45
qtyInStock-2
qtySourceFieldMap
snippetBurndy, YA34L2TC38FX45, Copper Tubing Compression Lug, 2 Holes With Inspection Window, 350 Kcmil Flex, 600v-35kv, 3/8" Stud, Standard, Blue.
tierPrice164.32
width1.55
width_AttribDimension - Pad Width inch
Color CodeBlue
Connector TypeTerminal
Die Index19;470
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction1-1/4 in
Dimension - B Length inch1.27 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction3/8
Dimension - Height inch2.25 in
Dimension - Hole Size inch, Dimension - N inch0.41 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm97 mm
Dimension - Length Overall inch3.81 in
Dimension - Outside Diameter inch1.06 in
Dimension - Pad Width inch1.55 in
Dimension - Strip Length inch1-5/16
Dimension - Z inch0.42 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size373.7 (925/#24) DLO
Conductor - Copper DLO Size Range373 kcmil
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Str Size Range350 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA34L2TC38FX451-211 @ $64.32
