LVR016K-2 Littelfuse Inc. | Circuit Protection | DigiKey

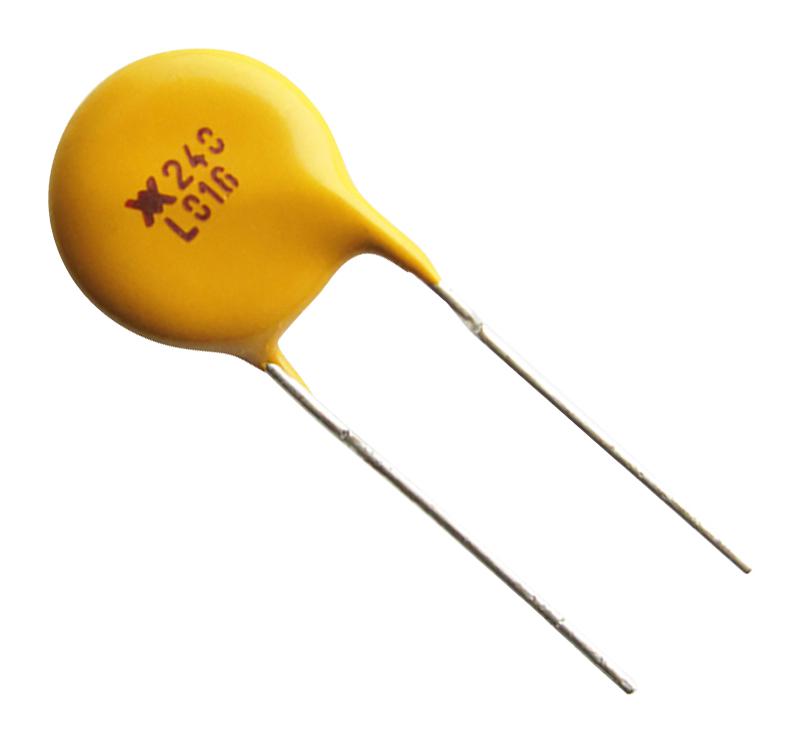

Polymeric PTC Resettable Fuse 240V (265V Int) 160 mA Ih Through Hole Radial, Disc
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | LVR016K-2 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.543 |
| height_Attrib | Height - Seated (Max) |
| moq, multiple | 10,000 |
| MPN | LVR016K-2 |
| qtyInStock | 31954 |
| SKU | 1773051 |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierMinQty7 | 500 |
| tierMinQty8 | 1,000 |
| tierPrice1 | 0.9199999999999999 |
| tierPrice2 | 0.8901 |
| tierPrice3 | 0.8636499999999999 |
| tierPrice4 | 0.72634 |
| tierPrice5 | 0.6030599999999999 |
| tierPrice6 | 0.5482279999999999 |
| tierPrice7 | 0.466003 |
| tierPrice8 | 0.411171 |
| Category | Circuit Protection |
| Series | PolySwitch?, LVR |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 2 A |
| Current - Hold (Ih) (Max) | 160 mA |
| Current - Trip (It) | 370 mA |
| Time to Trip | 15 s |
| Resistance - Initial (Ri) (Min) | 2.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 7.8 Ohms |
| Operating Temperature | -20?C ~ 85?C |
| Ratings, Thickness (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) |
| Height - Seated (Max) | 0.543" (13.80mm) |
| Lead Spacing | 0.200" (5.08mm) |
| Approval Agency | CQC, CSA, TUV, UL |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1773051 | 10000 | 31954 | 10000 | 1 @ $0.92, 5 @ $0.89, 10 @ $0.86, 50 @ $0.73, 100 @ $0.60, 250 @ $0.55, 500 @ $0.47, 1000 @ $0.41 |
| RS Delivers | 869-7368 | 1 | 1 | ||
 Newark | 81AH9176 | 5 | 1250 | 5 | 1 @ $1.05, 10 @ $0.99, 50 @ $0.90, 100 @ $0.81, 250 @ $0.74, 500 @ $0.62, 1000 @ $0.55 |
| Newark | 34AC4835 | 2000 | 2000 | 1 @ $0.42, 5000 @ $0.41, 10000 @ $0.38, 20000 @ $0.35, 30000 @ $0.33, 50000 @ $0.31 | |
| Digi-Key | 3592838 | 1 | 10952 | 1 | 1 @ $0.92, 5 @ $0.89, 10 @ $0.86, 50 @ $0.73, 100 @ $0.60, 250 @ $0.55, 500 @ $0.47, 1000 @ $0.41, 2000 @ $0.33, 4000 @ $0.33 |
| RS Delivers | 164-8200 | 1 | 1 | 1 @ $710.87 | |
| RS Delivers | 869-7368P | 1 | 1 | ||
| RS Online | 1648200 | 1 | 1 | ||
| RS Online | 8697368 | 1 | 1 |
