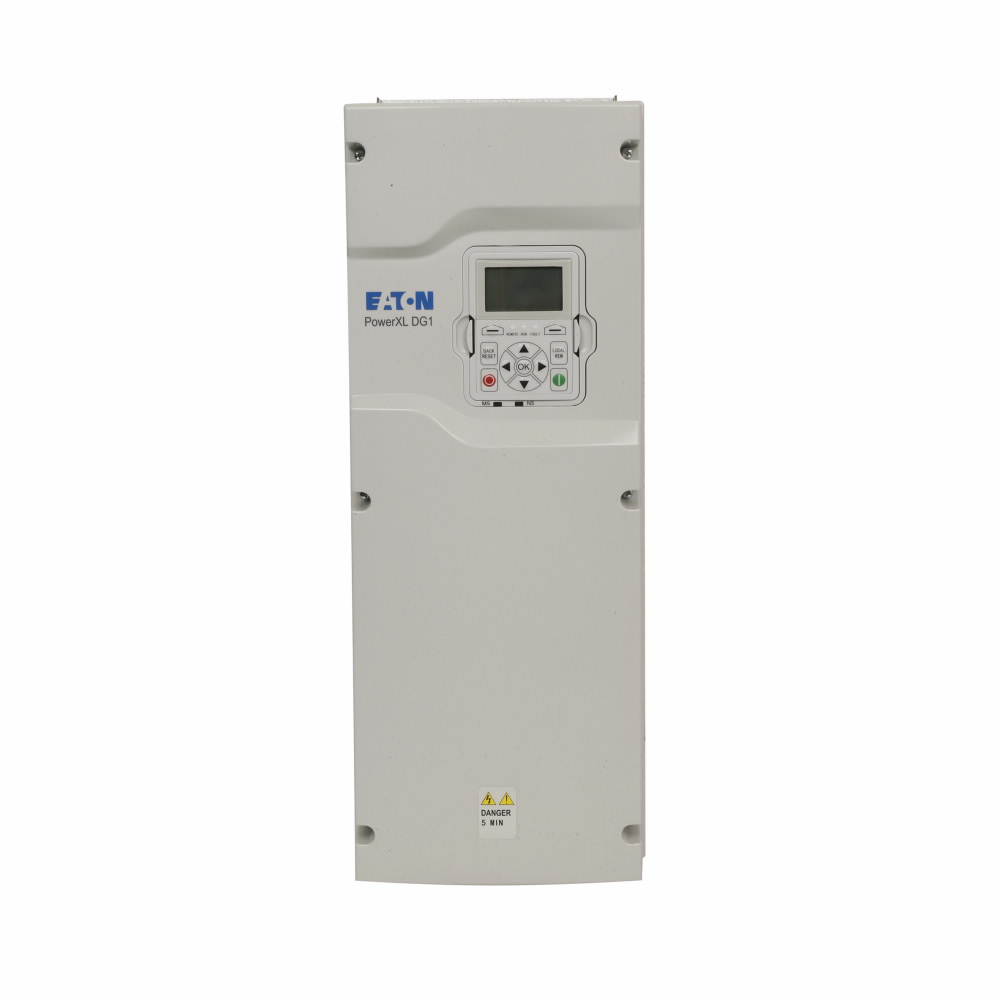

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 46 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating NEMA 1

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 46 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating NEMA 1

Eaton . DG1-34046FB-C21C

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerEaton
CategoryId, CategoryIdL39958
CategoryIdL138
CategoryIdL29957
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3Variable Frequency Drives
CategoryL4NEMA-Rated Enclosure Drives
DimensionUnitinch
GTIN, UPC786685878775
WeightUnitlbs
depth, length10.44
height20.43
height_AttribHeight
jsonUrlData924526ffbdad25e5923b
length_AttribDepth
moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty11
MPNDG1-34046FB-C21C
qtySourceqtyInStockOverride
SKUG0121217
tierPrice14097.99
urlhttps://www.zoro.com/eaton-variable-freq-drive-30-hp-46a-380-500vac-dg1-34046fb-c21c/i/G0121217/
width8.06
width_AttribWidth
Height20.43 in
Width8.06 in
Depth10.44 in
Overall Height16 in
Overall Depth27 1/2 in
Overall Width11 1/2 in
ItemVariable Frequency Drive
Accepts Input Control Signal0-10V DC, 4-20mA
EnclosureOpen
Input Frequency50/60 Hz
StandardsRoHS, GoST-R, C-Tick, CE, cUL Listed, UL Listed, UL 508C, EN ISO 13849-1, IEC 61508, EN 62061
Digital Readout, Key Pad Lockout, Dynamic BrakingYes
Output Voltage480V AC
For Use With3-Phase Inverter Duty Motor
Max HP30 hp
Control TypeKeypad
With Bypass / No BypassNo Bypass
Starting Torque1.5
Max Output Amps46 A
Input Phase AC, Output Phase ACThree
Control MethodActive Energy Control

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG01212171111 @ $4097.99
Platt.com0122549111 @ $4111.79
Allied Electronics7079761911
Newark81Y2393111 @ $6546.08, 5 @ $6192.24
Elliott ElectricDG134046FBC21C1Currently Out Of Stock11 @ $4048.16
motorsandcontrol.comDG1-34046FB-C21C111 @ $3840.69
kempstoncontrols.co.ukDG1-34046FB-C21C111 @ $4498.24
Crescent Electric Supply Co200451911
turtle.comCUH DG1-34046FB-C21C1-211 @ $7760.27
cappusa.com4848319111 @ $6009.55
Crescent Electric Supply CoDG1-34046FB-C21C11
Airline HydraulicsEATON DG1-34046FB-C21C111 @ $8151.84
us.rs-online.com70797619111 @ $6070.25, 3 @ $5888.15
crescentelectric.com4499261111 @ $7375.93
