Line Volt Mechanical Tstat, Open on Rise, DPST, 120 to 480VAC

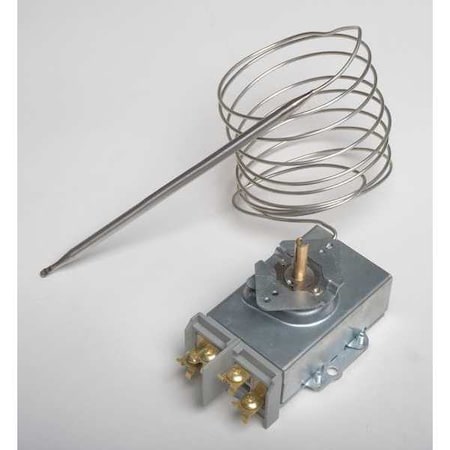

Dayton 6EDZ0 Line Voltage Thermostat, Remote Bulb, DPST

Dayton . 6EDZ0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
DimensionUnitinch
Extra Product NameLine Volt Mechanical Tstat, Open on Rise, DPST, 120 to 480VAC
UPC190735362266
UnitOfMeasureEA
Voltage120 to 480VAC
Weight0.95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
extendedLead26
extendedQty-2
height3
length9.4
moq, multiple, tierMinQty1, Number of Switches, Phase, Number of Poles1
MPN6EDZ0
qtyInStock0
SKUG0314973
tierPrice1166.49
urlhttps://www.zoro.com/dayton-line-volt-mechanical-tstat-open-on-rise-dpst-120-to-480vac-6edz0/i/G0314973/
width3.4
Switch ActionOpen on Rise
Sensor TypeCopper Bulb
Differential, Temperature Sensitivity+/-18 Degrees F
Thermostat Control Range, Control Range, Temperature Control Range100 Degrees to 550 Degrees F
Width, Overall Width2 1/4 in
Height, Overall Depth, Overall Height3 1/8 in
Remote Sensing Bulb Included, Remote Sensing CapabilityYes
Sensing Bulb Dia1/4 in
Full Load Amps @ 120VAC, Inductive Amps @ 240V, Contact Rating Resistive @ 277V, Full Load Amps @ 240VAC, Amperage30 A
IncludesRemote Sensing Bulb
Pilot Duty Contacts (VA)125 VA
Sensing Bulb Length, Bulb Length3 1/2 in
Thermostat Voltage, Contact Rating120 to 480V AC
Thermostat Item, ItemLine Voltage Mechanical Thermostat
Thermostat Heating/CoolingHeating
Thermostat Programmable, Dual Transformer Compatible, Dehumidification Control, Millivolt Compatible, Programming CapabilityNo
Enclosure TypeNone
Thermostat Switch TypeDPST
Contact Rating Resistive @ 120V15 A
Contact Rating Resistive @ 240V22 A
Inductive Amps @ 120V16 A
Capillary Length84 in
Pilot Duty Rating125V AC
Bulb Diameter3/4 in
Differential TypeFixed
Frequency50 Hz, 60 Hz
Maximum Operating Humidity80 %
Sensor Size3 1/2 in L, 3/4 in Dia
Enclosure ColorGrey
Mounting DirectionHorizontal; Vertical
Enclosure MaterialSteel
Maximum Control Temperature550 Degrees F
Setpoint AdjustabilityAdjustable Setpoint
Temperature ScaleFahrenheit
Maximum Operating Temperature302 Degrees F
Compatible System TypeHydronic Systems
Enclosure NEMA RatingNot Rated
Electrical Connection TypeHardwired
Minimum Operating Humidity5 %
Minimum Operating Temperature-22 Degrees F
Temperature Differential18 Degrees F
Sensor LocationBuilt-In
Minimum Control Temperature100 Degrees F
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0314973111 @ $166.49
Grainger6EDZ011
AmazonTPB004ZRMK20111 @ $190.00
Raptor SuppliesAE8MXM111 @ $316.41
sustainablesupply.comC1140371111 @ $189.27
