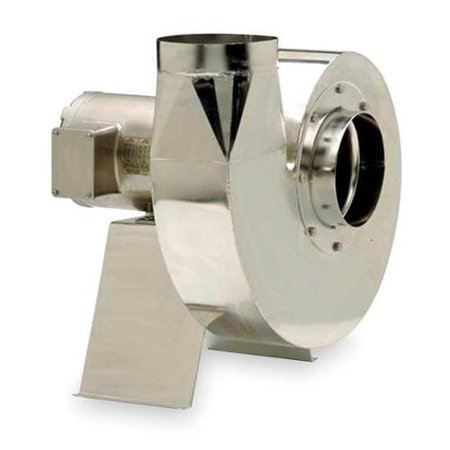

Blower, Stainless Steel, Direct Drive Forward Curve, Wheel Dia 7.7 In, CFM @ 0.250-In SP 750, CFM @ 0.500-In SP 700, CFM @ 0.750-In SP 600, Max Inlet Temp 200 Deg F, Voltage 230/460, 60 Hz, 3 Phase, Full Load Amps 1.4/0.7, Motor HP 1/3, Height 19.25 In, Width 20.75 In, Depth 13.51 In, Inlet Dia 6.3 In, Outlet Dia 6.3 In, Housing Material 316 Stainless Steel, Includes Motor Mounting Base Features Applications, Comments: Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals Bearing Type: Ball CFM @ 0.200-In. SP: # CFM @ 0.250-In. SP: 750 CFM @ 0.500-In. SP: 700 CFM @ 0.750-In. SP: 600 CFM @ 1.000-In. SP: 500 CFM @ 1.500-In. SP: 100 Depth (In.): 13.51 Full Load Amps: 1.4/0.7 Height (In.): 19.25 Includes: Motor Mounting Base Inlet Dia. (In.): 6.30 Item: Blower Motor HP: 1/3 Motor RPM: 1725 Outlet Dia. (In.): 6.30 Phase: 3 Shaft Dia. (In.): 5/8 Type: Stainless Steel, Direct Drive Forward Curve Wheel Dia. (In.): 7.70 Wheel Width (In.): 7.70 Width (In.): 20.75 Blower RPM: 1725 Housing Material: Electro Polished 316 Stainless Steel Hz: 60 Max. Ambient Temp. (F): 102 Motor Enclosure: Totally Enclosed Fan Cooled Motor Frame: 56 Motor Type: Three Phase Rotation: CCW Voltage: 230/460 Wheel Type: Forward Curve CFM @ 1.250-In. SP: 300 Agency Compliance: Motors are UL Listed and CSA Certified Max. Inlet Temp. (Deg. F): 200 Wheel Material: 316 Stainless Steel

Blower, Stainless Steel, Direct Drive Forward Curve, Wheel Dia 7.7 In, CFM @ 0.250-In SP 750, CFM @ 0.500-In SP 700, CFM @ 0.750-In SP 600, Max Inlet Temp 200 Deg F, Voltage 230/460, 60 Hz, 3 Phase, Full Load Amps 1.4/0.7, Motor HP 1/3, Height 19.25 In, Width 20.75 In, Depth 13.51 In, Inlet Dia 6.3 In, Outlet Dia 6.3 In, Housing Material 316 Stainless Steel, Includes Motor Mounting Base Features Applications, Comments: Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals Bearing Type: Bal
