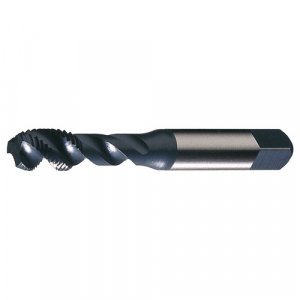

Spiral Flute Tap, M12-1.75, Semi-Bottoming, Metric, 3 Flutes

Cleveland B101 High-Performance Tap C27935. ✅Cleveland authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Cleveland . C27935

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCleveland
DimensionUnitinch
Extra Product NameSpiral Flute Tap, M12-1.75, Semi-Bottoming, Metric, 3 Flutes
UPC697334279358
UnitOfMeasureEA
Weight0.02
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead8
extendedQty-2
height1.28
jsonUrlData924526ffbdad25e5923b
length3.94
moq, multiple, tierMinQty1, Number of Pieces1
MPNC27935
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2844191
tierPrice144.72
urlhttps://www.zoro.com/cleveland-spiral-flute-tap-m12-175-semi-bottoming-metric-3-flutes-c27935/i/G2844191/
width3.35
ItemSpiral Flute Tap
Tap Thread SizeM12-1.75
Overall Length85.72mm
Tap StyleSpiral Flute
Tap ChamferSemi-Bottoming
Tap Thread Type, Tap Dimension Type, Measurement System, Thread StandardMetric
Shank Dia9.32mm
Number of Flutes3
Tap FinishSteam Oxide
Tap MaterialHigh Speed Steel
Tap SizeM12
Thread Length42.06mm
List Number, SeriesB101
Standards, Tap Shank StandardUSCTI Table 302A
Pitch Diameter Limit, Thread LimitD6
Thread Direction, Cutting Direction - Machining, Spiral DirectionRight Hand
55% Thread Drill Size27/64 in
Primary Material ApplicationStainless Steel, Steel
Drill Bit Size10.20mm
Thread Pitch1.75mm
Shank Type - MachiningStraight
Shank Length43.66 mm
Square Size6.99mm
Helix Angle42 Degrees
Extended NeckYes
Secondary Material Application ISO CodeK, M
Thread SizeM12x1.75
Primary Material Application ISO CodeM, P
75% Thread Drill Size10.30mm
65% Thread Drill Size10.50 mm
Secondary Material ApplicationCast Iron, Stainless Steel
Class of Fit6H
Country of Origin (subject to change)United States
