Compass

ExtSgn EmLt,Thrmp,Nic Cad,LED,4.06W.

Compass . CCRRCSD

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameCompass
DimensionUnitinch
GraingerSku488U42
UPC840141418810
UnitOfMeasureEA
Weight3.1
WeightUnitlbs
cali_prop65_cancercausechemLead
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_reproharmcausechemCadmium
cali_prop65_warnmsgscenario3
countryOfOriginCN
height3.4
jsonUrlData924526ffbdad25e5923b
length19.5
moq, multiple, tierMinQty11
MPNCCRRCSD
qtyInStock446
qtyInStockOverride-2
SKUG6623132
tierPrice179.10
urlhttps://www.zoro.com/compass-exit-sign-with-emergency-lights-18-in-w-7-316-in-h-ccrrcsd/i/G6623132/
width8.5

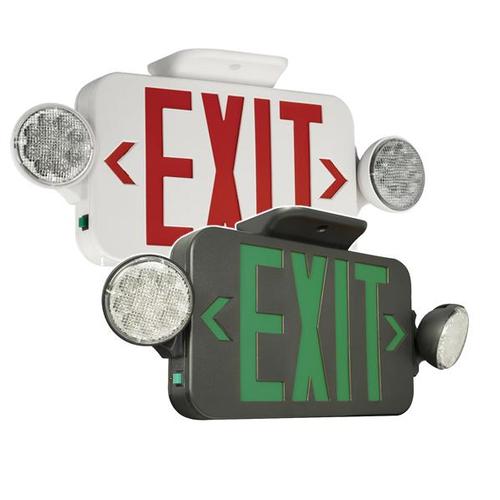

Item, Item - Emergency Lighting and Exit SignsExit Sign with Emergency Lights
Width, Overall Width18 in
Height7 3/16 in
Emergency Illumination Time90 min
Housing Material - Emergency Lighting and Exit Signs, Housing MaterialPlastic
Background Color, Housing Color - Emergency Lighting and Exit Signs, Housing ColorWhite
Warranty, Manufacturers Warranty Length2 yr
Voltage - Emergency Lighting and Exit Signs120/277
Bulb Technology, Lamp Head Light Source - Emergency Lighting and Exit Signs, Lighting Technology, Lamp Head Light SourceLED
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Letter Size, Text Height6 in
Battery ChemistryNickel Cadmium
Number of Lamp Heads, Number of Bulbs2
MountingWall/Ceiling
Emergency Back Up Battery, CA Title 20 Compliant, Emergency Battery Backup, Self DiagnosticsYes
Fixture Wattage4.0
Letter Color, Text ColorRed
Directional Indicators - Emergency Lighting and Exit SignsUniversal Field Selectable Chevrons
Optional Guard, Remote CapableNo
Operating Temp Range68 Degrees to 86 Degrees C
Number of Faces1 or 2
StandardsCEC T20, NFPA 70 and 101, OSHA, UL 924 Suitable for Damp Location
Depth, Overall Depth2 in
Recommended Mounting Height7 1/2 ft
Diagnostic Testing FunctionSelf Diagnostics/Remote Test
Overall Height7 1/4 in
Minimum Operating Temperature68 Degrees C
Text Size6 in High
SeriesCC
Lamp Wattage4 W
Remote Capacity2 W
Compliance TypeNone
Recommended Single Fixture Spacing12 ft
ApplicationDamp Location
Emergency Wattage4.12 W
Lamp Head LocationSide
Maximum Operating Temperature86 Degrees C
Lamp Head ShapeRound
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6623132144611 @ $79.10
simsupply.comZO-G662313215711 @ $103.17
Grainger488U421-211 @ $138.03
us.rs-online.com74025398111 @ $99.68
emergencylighting.com112:CCRRCSD1-211 @ $123.54
