| Brand name, Manufacturer name, Manufacturer | PURELINK |
|---|

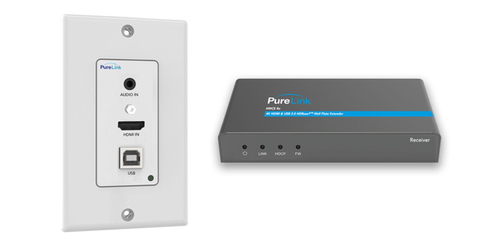

| KnownMan, Extra Product Name | PureLink HWCE Tx/Rx Wall Plate Extension System, 4K HDMI, USB 2.0 over HDBaseT - Conference Room AV |
|---|
| Weight | 0.44 |
|---|
| WeightUnit | lbs |
|---|
| Weight_Attrib | Receiver Weight |
|---|
| moq, multiple, tierMinQty1 | 1 |
|---|
| MPN, SKU | HWCE TX/RX |
|---|
| qtyInStock | 0 |
|---|
| snippet | Shop for PureLink HWCE Tx/Rx Wall Plate Extension System, 4K HDMI, USB 2.0 over HDBaseT and other Range Extenders with the best prices, free shipping and customer reviews from ConferenceRoomAV.com |
|---|
| tierPrice1 | 749.99 |
|---|
| Inputs | 1 HDMI Type A (19-pin female), 1 3.5mm stereo audio, 1 USB Type B, 1 RS-232 (3-pin phoenix), 1 DC 24V/GND (2-pin phoenix) |
|---|
| Output | 1 HDBaseT OUT (RJ45), |
|---|
| Supports resolutions up to 4K@60Hz (4:2:0)/4K@30Hz (4:4 | 4) |
|---|
| Input | 1 HDBaseT IN (RJ45) |
|---|
| Outputs | 1 HDMI Type A (19-pin female), 1 3.5mm stereo audio, 1 USB Type A, 1 RS-232 (3-pin phoenix), 2 USB Type A |
|---|
| Compliance | HDMI 1.4, HDCP 2.2, USB 2.0 |
|---|
| Supported Bandwidth | 10.2 Gbps |
|---|
| Supported Resolutions: 4K@50/60Hz (4:2:0), 4K@30Hz (4:4 | 4), 1080p@120Hz, 1080p 3D@60Hz |
|---|
| Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2 | 2 |
|---|
| Color Depth | 8-bit, 10-bit, 12-bit |
|---|
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|---|
| Analog Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
|---|
| Max Power Consumption | 9 Watts |
|---|
| Power Supply Input | AC100 - 240V 50/60Hz |
|---|
| Power Supply Output | DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
|---|
| Transmitter Dimensions | 4.07"x1.81"x1.18" |
|---|
| Receiver Dimensions | 5.51"x2.95"x0.91" |
|---|
| Transmitter Weight | 0.36 lbs |
|---|
| Receiver Weight | 0.44 lbs |
|---|
