OD9225-24HB01A Orion Fans | Fans, Thermal Management | DigiKey

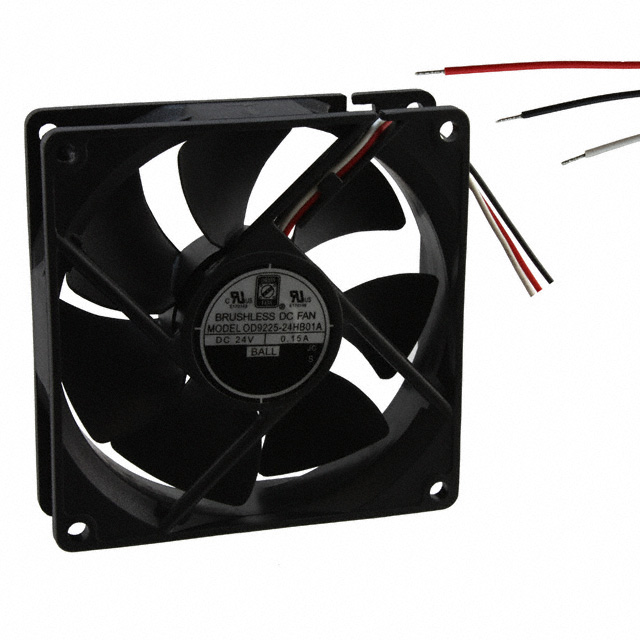

Fan Tubeaxial 24VDC Square - 92.5mm L x 92.5mm H Ball 53.0 CFM (1.48m?/min) 3 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD9225-24HB01A Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD9225-24HB01A |
| qtyInStock | 186 |
| SKU | 1053-1282-ND |
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 92.5mm L x 92.5mm H |
| Width | 25.00mm |
| Air Flow | 53.0 CFM (1.48m?/min) |
| Static Pressure | 0.130 in H2O (32.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Noise | 35.0dB |
| RPM | 2900 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection, Weight | - |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.150A |
| Voltage Range | 12 ~ 28VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 60000 Hrs @ 40?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 1053-1282-ND | 1 | 186 | 1 | ||
| Hotenda | H1900515 | 1 | 373 | 1 | 1 @ $14.41, 10 @ $13.73, 25 @ $12.87, 100 @ $11.41, 250 @ $10.72, 500 @ $10.51 |
 Carlton Bates Company | 40308486226 | 1 | 1 | 1 @ $0.00 | |
| 2621187 | 1 | 1051 | 1 | 1 @ $17.02, 10 @ $16.25, 25 @ $15.28, 50 @ $14.70, 100 @ $13.54, 250 @ $12.67, 500 @ $12.47 | |
 Newark | 36AJ7814 | 1 | 7 | 1 | 1 @ $17.41, 5 @ $16.95, 10 @ $16.31, 25 @ $15.29, 50 @ $14.28, 100 @ $13.27 |
| OD9225-24HB01A-ORIN | 1 | 1 | 1 @ $18.06 | ||
| 10142073 | 1 | 1 | 1 @ $15.35 | ||
| us.rs-online.com | 70103588 | 1 | 3 | 1 | 1 @ $17.04, 5 @ $16.58, 10 @ $15.94, 25 @ $14.92, 50 @ $13.91, 100 @ $12.99 |
