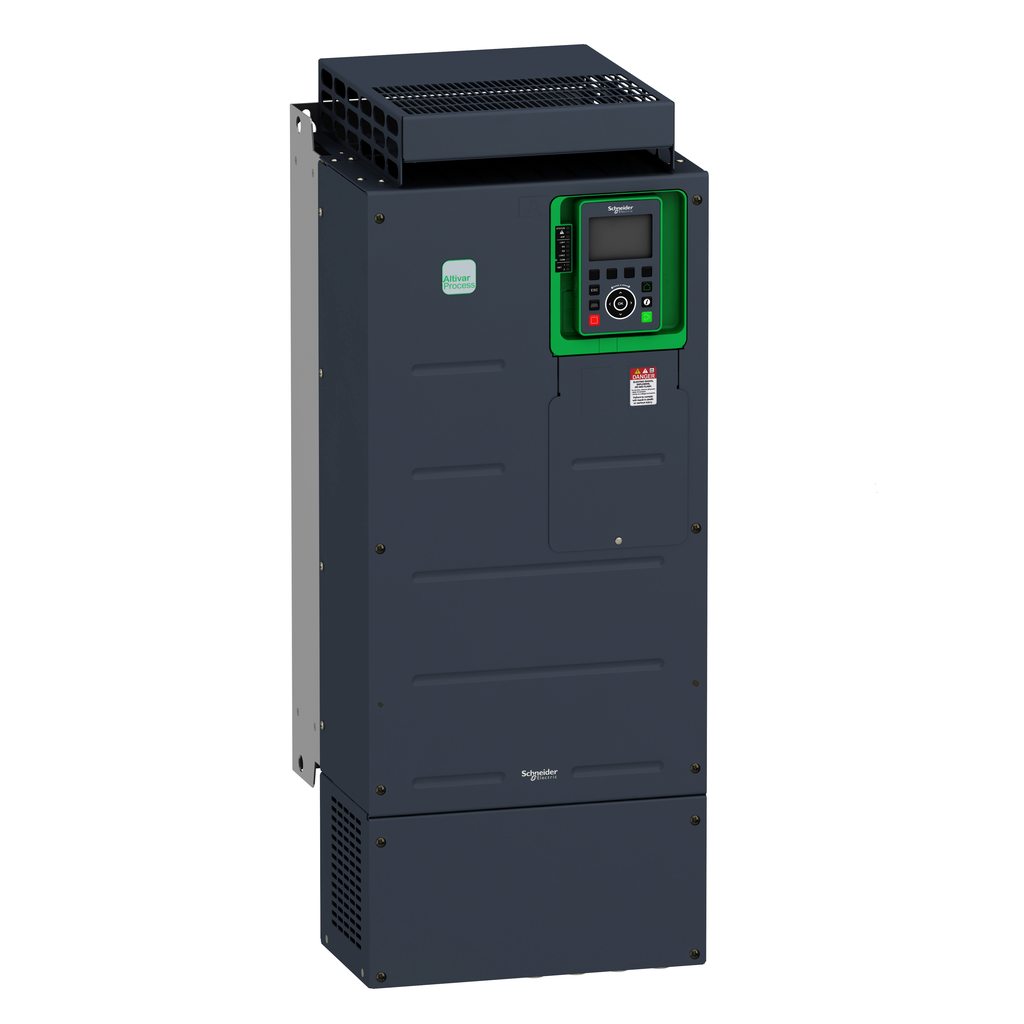

Variable speed drive, Altivar Process ATV900, ATV930, 50 HP, 600 V, IP20 | Mayer Electric

Mayer Electric Supply . ATV930D37S6

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Process ATV900, ATV930, 50 HP, 600 V, IP20 | Mayer Electric
UPC785901019992
Weight55
WeightUnitkg
Weight_AttribNet Weight
depth, length297.0
height822.0
height_AttribHeight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Variable-speed-drive-ATV930-50-HP-600V-IP20-785901019992
jsonUrlData2d02ab9bd-f2c8-4ad5-b0ef-abd20061ddc9
length_AttribDepth
moq, multiple, tierMinQty1, Quantity Per Set1
MPNATV930D37S6
qtyInStock0
SKUSQDATV930D37S6
tierPrice18081.76
width331.0
width_AttribWidth
Prospective Line Isc70 kA
Network Frequency50-60 Hz
Degree Of ProtectionUL type 1
Maximum Output Frequency599 Hz
Product Destinationsynchronous motors || asynchronous motors
Phase3 phase
Range Of ProductAltivar Process ATV900
Asynchronous Motor Control Profilevariable torque standard || constant torque standard || optimized torque mode
Variantstandard version || with braking chopper
Product Or Component Typevariable speed drive
Apparent Power48.9 kVA 600 V normal duty) || 42.2 kVA 600 V heavy duty)
Ip Degree Of ProtectionIP20
Switching Frequency1...4.9 kHz adjustable || 2.5...4.9 kHz with derating factor
Maximum Transient Current62.4 A 60 s normal duty) || 62.3 A 60 s heavy duty)
[Us] Rated Supply Voltage600 V - 15...10 %
Communication Port ProtocolModbus serial || Modbus TCP || EtherNet/IP
Mounting Modewall mount
Discrete Input Logic16 preset speeds
Continuous Output Current52 A 2.5 kHz normal duty || 41.5 A 2.5 kHz heavy duty
Product Specific Applicationprocess for industrial
Nominal Switching Frequency2.5 kHz
Emc Filterintegrated || with EMC plate option
Maximum Horse Power Rating50.0 hp normal duty || 40.0 hp heavy duty
Device ApplicationIndustrial Application
Synchronous Motor Control Profilepermanent magnet motor || synchronous reluctance motor
With Safety Function Safe Brake Management (Sbc/Sbt), 4 Quadrant Operation Possible, With Safety Function Safe Torque Off (Sto), Brake Chopper Integrated, With Safety Function Safe Stop 1 (Ss1), With Safety Function Safely Limited Speed (Sls)true
Height822 mm
Power Dissipation In Wforced convection 592 W 600 V 2.5 kHz || natural convection 182 W 600 V 2.5 kHz
Analogue Output Typesoftware-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s || S, U or customized
Maximum Output Voltage600.0 V
Base Load Current At High Overload41.5 A
Transmission FrameRTU
With Safety Function Safe Speed Monitor (Ssm), With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Safety Function Safe Programmable Logic, With Sft Fct Safe Stop 2 (Ss2)false
Relay Output Number, Analogue Input Number3
Exchange Modehalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Local Signallinglocal diagnostic 3 LED mono/dual colour) || presence of voltage 1 LED red) || embedded communication status 3 LED dual colour) || communication module status 4 LED dual colour)
Data Format8 bits, configurable odd, even or no parity Modbus serial
Relative Symmetric Network Frequency Tolerance5 %
Base Load Current At Low Overload52.0 A
Net Weight55 kg
Type Of Polarizationno impedance
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 ?C analog output
Input CompatibilityDI1...DI8 discrete input level 1 PLC EN/IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Connector Type2 RJ45 || 1 RJ45
Motor Slip Compensationcan be suppressed || adjustable || automatic whatever the load || not available in permanent magnet motor law
Discrete Output Number, Analogue Output Number2
Physical InterfaceEthernet || 2-wire RS 485
Transmission Rate10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Method Of Accessslave Modbus TCP
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Number Of Addresses1-247
Isolationbetween power and control terminals
Discrete Input Number10
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
Width331 mm
Braking To Standstillby DC injection
Depth297 mm
Analogue Input TypeAI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Sampling Duration2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1706016EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1706016EN
UpgradeabilityUpgraded components available
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL || T?V || CSA
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Acceleration Under Shock Impact (During Operation)150 m/s? at 11 ms
StandardsUL 508C || EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDATV930D37S6111 @ $8081.76
