IXFK120N30P3 IXYS | Discrete Semiconductor Products | DigiKey

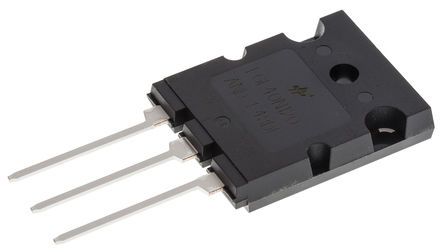

IXYS IXFK120N30P3 | Transistor: N-MOSFET; unipolar; 300V; 120A; 1130W; TO26
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXFK120N30P3 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1 | 1 |
| MPN | IXFK120N30P3 |
| qtyInStock | 0 |
| SKU | IXFK120N30P3-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1000 |
| tierMinQty7 | 2500 |
| tierMinQty8 | 5000 |
| tierPrice1 | 11.87000 |
| tierPrice2 | 10.90500 |
| tierPrice3 | 10.45240 |
| tierPrice4 | 9.04000 |
| tierPrice5 | 8.19250 |
| tierPrice6 | 7.51450 |
| tierPrice7 | 7.06250 |
| tierPrice8 | 6.78000 |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA |
| Vgs (Max) | ?20V |
| FET Feature | - |
| Power Dissipation (Max) | 1130W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-264AA (IXFK) |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 300 V |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8630 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXFK120N30P3-ND | 1 | 1 | 1 @ $11.87, 10 @ $10.90, 25 @ $10.45, 100 @ $9.04, 500 @ $8.19, 1000 @ $7.51, 2500 @ $7.06, 5000 @ $6.78 | |
| 146-1745 | 25 | 25 | 25 @ $10.08, 50 @ $9.57, 125 @ $9.07 | ||
| IXFK120N30P3 | 1 | 1 | 1 @ $20.31, 3 @ $17.94, 10 @ $16.23, 25 @ $14.91 | ||
| Digi-Key | 4321677 | 1 | 135 | 1 | 1 @ $18.16, 10 @ $16.69, 100 @ $14.10, 500 @ $12.54, 1000 @ $11.79 |
| RS Delivers | 802-4394P | 1 | 1 | ||
| RS Delivers | 802-4394 | 1 | 1 |
