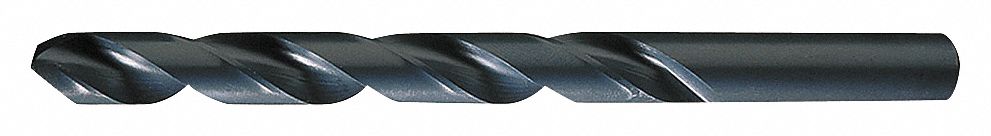

DRILL HD,HSS,STEAM OXIDE,#6

CHICAGO-LATROBE . 150ASP45676

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCHICAGO-LATROBE
DimensionUnitinch
Extra Product NameDRILL HD,HSS,STEAM OXIDE,#6
UNSPSC20111614
Weight0.02
WeightUnitlbs
diameter, height, width0.203125
height_Attrib, width_AttribShank Dia.
length3.75
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN150ASP45676
originalCurrency{'currency': 'CAD', 'tierPrice1': '4.13'}
qtyInStock0
SKUGNF150ASP45676
tierPrice12.9975787799999996
ItemJobber Length Drill Bit
Decimal Equivalent0.2040
Material - MachiningHigh Speed Steel
Drill Bit Point Angle135 Degrees
Coolant FedNon-Coolant Through
Number of Flutes2
Maximum Drilling Depth13/16 in
Cutting Direction, Spiral DirectionRight Hand
Shank Type - MachiningStraight
Shank Length1 1/4 in
Depth:Dia Ratio4xD
Drill Point Length0.0422 in
Series150ASP
Aircraft DrillYes
Material Grade - MachiningHigh Performance
Primary Material Application ISO CodeK, M, P
Drill Bit Size#6
Measurement SystemWire
Finish - MachiningBlack Oxide
Drill Bit Point TypeSplit Point
Flute TypeSpiral
Flute Length2 1/2 in
Helix Angle28 Degrees
Shank Dia13/64 in
Overall Length3 3/4 in
Drill Length ClassJobber Length
Drill Bit GroupingIndividual
StandardsNational Aerospace Standards (NAS) 907, Type B
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Primary Material ApplicationCast Iron, Stainless Steel, Steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caGNF150ASP45676111 @ $3.00
