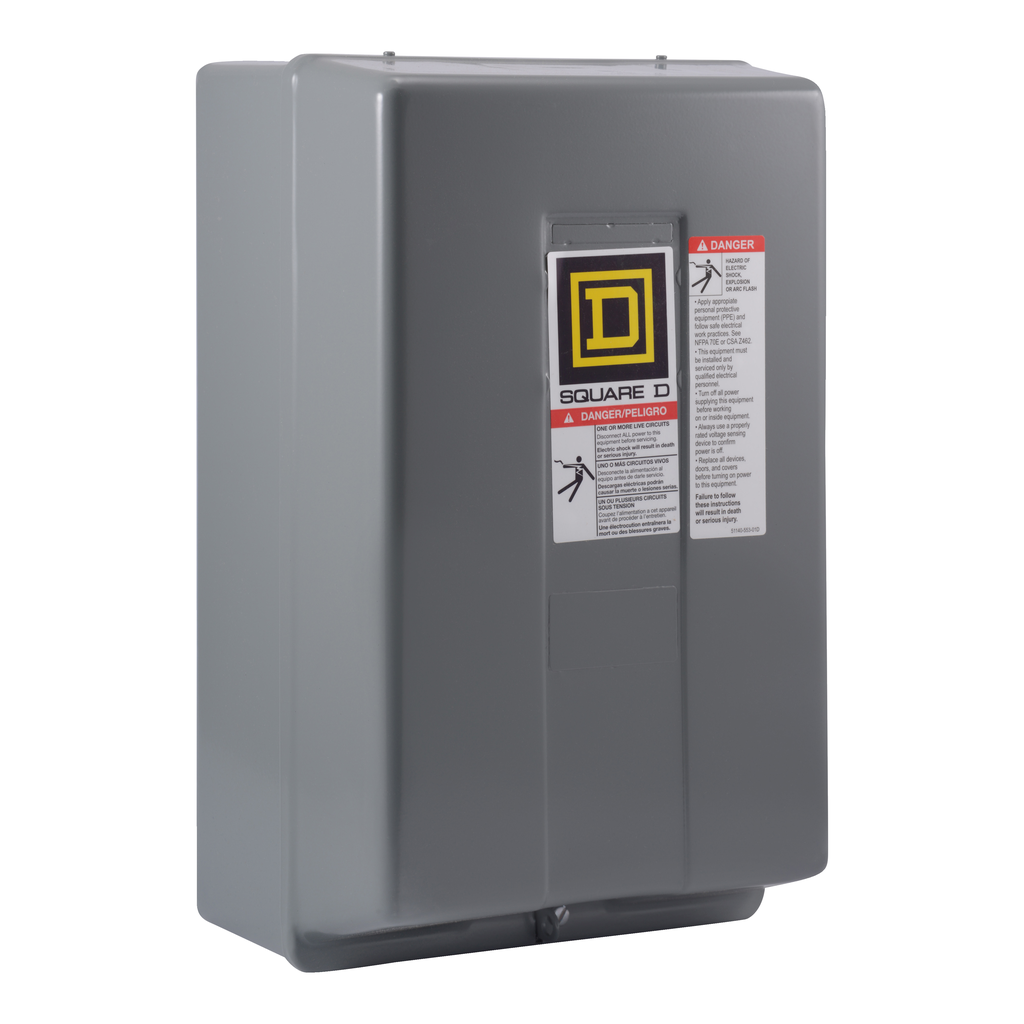

Contactor, Type L, multipole lighting, mechanically held, 30A, 12 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 | Mayer Electric

Mayer Electric Supply . 8903LXG0012V02

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameContactor, Type L, multipole lighting, mechanically held, 30A, 12 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 | Mayer Electric
UPC785901630296
depth, length153.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-8903LX-mechanically-held-lighting-contactor-12-P-12-NC-30-A-600-V-110-120-V-50-60-Hz-coil-NEMA-1-785901630296
jsonUrlData2a21a29e8-2011-4a32-a378-abd2006139b7
length_AttribDepth
moq, multiple, tierMinQty11
MPN8903LXG0012V02
qtyInStock0
SKUSQD8903LXG0012V02
tierPrice11579.32
width198.0
width_AttribWidth
Range Of Product8903LX
Control Circuitseparate control circuit
Product Or Component TypeMechanically Held Lighting Contactor
Warranty18 months
Local Signallingno indicator
Height322 mm
Control Typeno control units
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Electrical Connectionscrew-clamp terminals
Width198 mm
Depth153 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Inrush Power In Va170-170 VA 60 Hz || 25-25 VA 50 Hz || 180-180 VA 50/60 Hz
Poles Description12P 12 NC
Additional Included Devicenone
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1407018EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsUL Listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD8903LXG0012V02111 @ $1579.32
