OD6010-12HB Orion Fans | Fans, Thermal Management | DigiKey

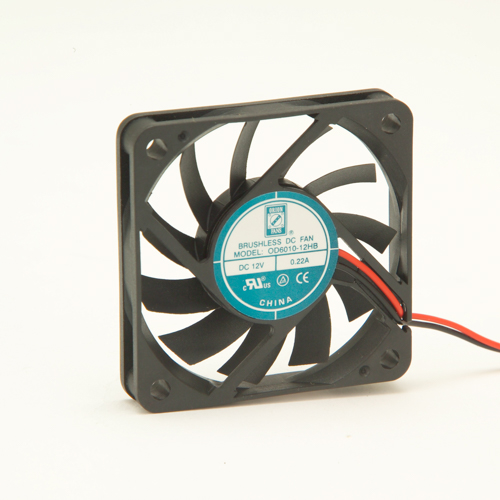

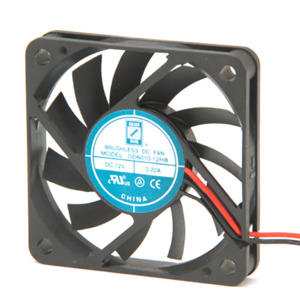

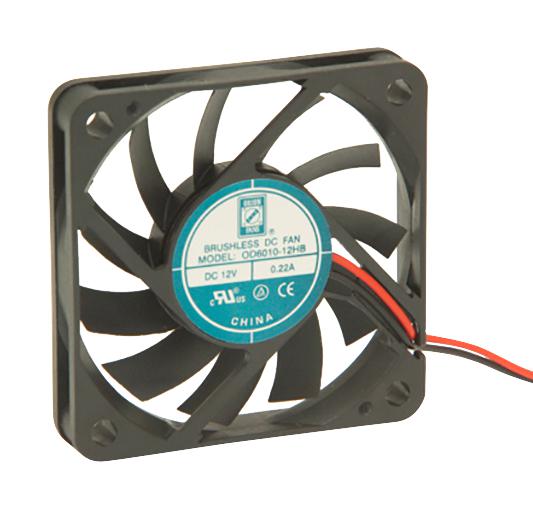

Orion Fans Part Number OD6010-12HB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD6010-12HB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD6010-12HB |
| qtyInStock | 752 |
| SKU | 1053-1227-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 10.50mm |
| Air Flow | 21.0 CFM (0.588m?/min) |
| Static Pressure | 0.160 in H2O (39.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight, Voltage Range | - |
| Noise | 36.0dB |
| RPM | 4600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.250A |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 60000 Hrs @ 45?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1227-ND | 1 | 752 | 1 | |
| OD6010-12HB | 1 | 123 | 1 | 1 @ $7.97, 25 @ $7.57, 100 @ $7.20, 500 @ $6.84, 1000 @ $6.27 | |
 arcade-electronics.com | ORI-OD6010-12HB | 1 | -2 | 1 | 1 @ $10.89 |
| Hotenda | H1900726 | 1 | 730 | 1 | 1 @ $9.15, 10 @ $8.71, 25 @ $8.17, 100 @ $7.24, 250 @ $6.81, 500 @ $6.67 |
 Carlton Bates Company | 40308486310 | 1 | 1 | 1 @ $9.86 | |
 swatee.com | OD6010-12HB | 1 | 168 | 1 | 1 @ $15.86 |
 AmazonTP | B00M29561A | 1 | 1 | 1 @ $19.18 | |
| AmazonUNK | B00M29561A | 1 | -2 | 1 | 1 @ $19.18 |
| 2031001066 | 1 | -2 | 1 | 1 @ $12.08 | |
| AmazonSC | B00M29561A | 1 | 1 | 1 @ $27.69 | |
 Newark | 89AH2576 | 1 | 3 | 1 | 1 @ $13.39, 5 @ $13.03, 10 @ $12.54, 25 @ $11.76, 50 @ $10.98, 100 @ $10.20 |
 we-supply.com | OD6010-12HB | 1 | 2 | 1 | 1 @ $13.63 |
 Galco | OD6010-12HB-ORIN | 1 | 1 | 1 @ $13.88 | |
 Newark | 51AK1700 | 1 | 1 | 1 @ $18.85, 50 @ $17.27, 100 @ $15.97, 250 @ $14.96, 500 @ $14.11 | |
| 10141355 | 1 | 34 | 1 | 1 @ $11.80 | |
| us.rs-online.com | 70103415 | 1 | 1883 | 1 | 1 @ $14.67, 10 @ $14.01, 25 @ $13.18, 50 @ $12.68, 100 @ $11.67, 250 @ $10.92 |
| OD6010-12HB | 1 | 1 | 1 @ $15.16 |
