A-DSF 25 LPIII/FP Assmann WSW Components | Connectors, Interconnects | DigiKey

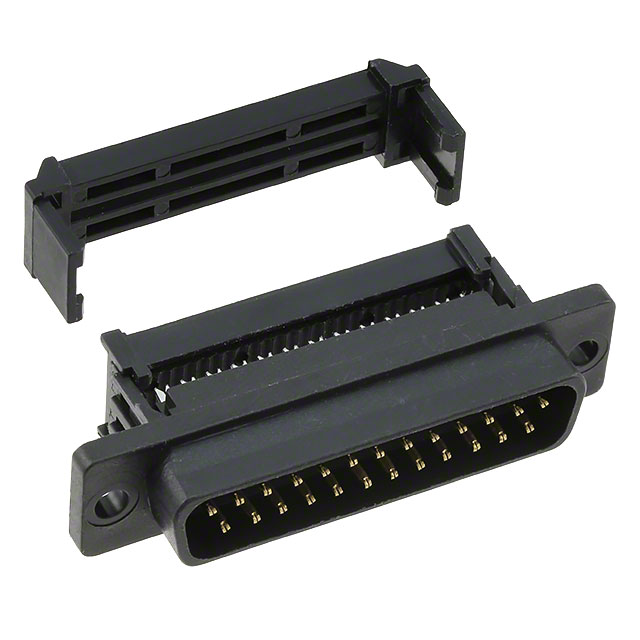

25 Position D-Sub Plug, Male Pins Connector
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Assmann WSW Components |
|---|---|
| CategoryL1, Category | Connectors, Interconnects |
| CategoryL2 | D-Sub, D-Shaped Connectors |
| CategoryL3 | D-Sub Connector Assemblies |
| Extra Product Name | A-DSF 25 LPIII/FP Assmann WSW Components | Connectors, Interconnects | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| color, Color | Black |
| extraShipping | 0 |
| MPN, Manufacturer Product Number | A-DSF 25 LPIII/FP |
| packaging, Package | Tray |
| qtyInStock | 567 |
| SKU | 5131419 |
| snippet, Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| tariff | 1.2 |
| tierMinQty2 | 10 |
| tierMinQty3, Number of Positions | 25 |
| tierMinQty4 | 48 |
| tierMinQty5 | 96 |
| tierMinQty6 | 240 |
| tierMinQty7 | 480 |
| tierMinQty8 | 960 |
| tierMinQty9 | 2,400 |
| tierPrice1 | 2.82 |
| tierPrice2 | 2.4551999999999996 |
| tierPrice3 | 2.35056 |
| tierPrice4 | 2.298504 |
| tierPrice5 | 2.193996 |
| tierPrice6 | 1.9850039999999998 |
| tierPrice7 | 1.828296 |
| tierPrice8 | 1.567116 |
| tierPrice9 | 1.21887 |
| Digi-Key Part Number | 123-A-DSF25LPIII/FP-ND |
| Description | CONN D-SUB PLUG 25POS IDC |
| Manufacturer Standard Lead Time | 25 Weeks |
| Series, Shell Material, Finish, Contact Finish, Contact Finish Thickness, Ingress Protection, Backset Spacing, Contact Form | - |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | IDC, Ribbon Cable |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Features | Feed Through, Strain Relief |
| Voltage Rating | 250V |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Wire Gauge | 26-28 AWG |
| Contact Material | Copper Alloy |
| Operating Temperature | -55?C ~ 105?C |
| Base Product Number | A-DSF 25 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 5131419 | 1 | 567 | 1 | 1 @ $2.82, 10 @ $2.46, 25 @ $2.35, 48 @ $2.30, 96 @ $2.19, 240 @ $1.99, 480 @ $1.83, 960 @ $1.57, 2400 @ $1.22 |
