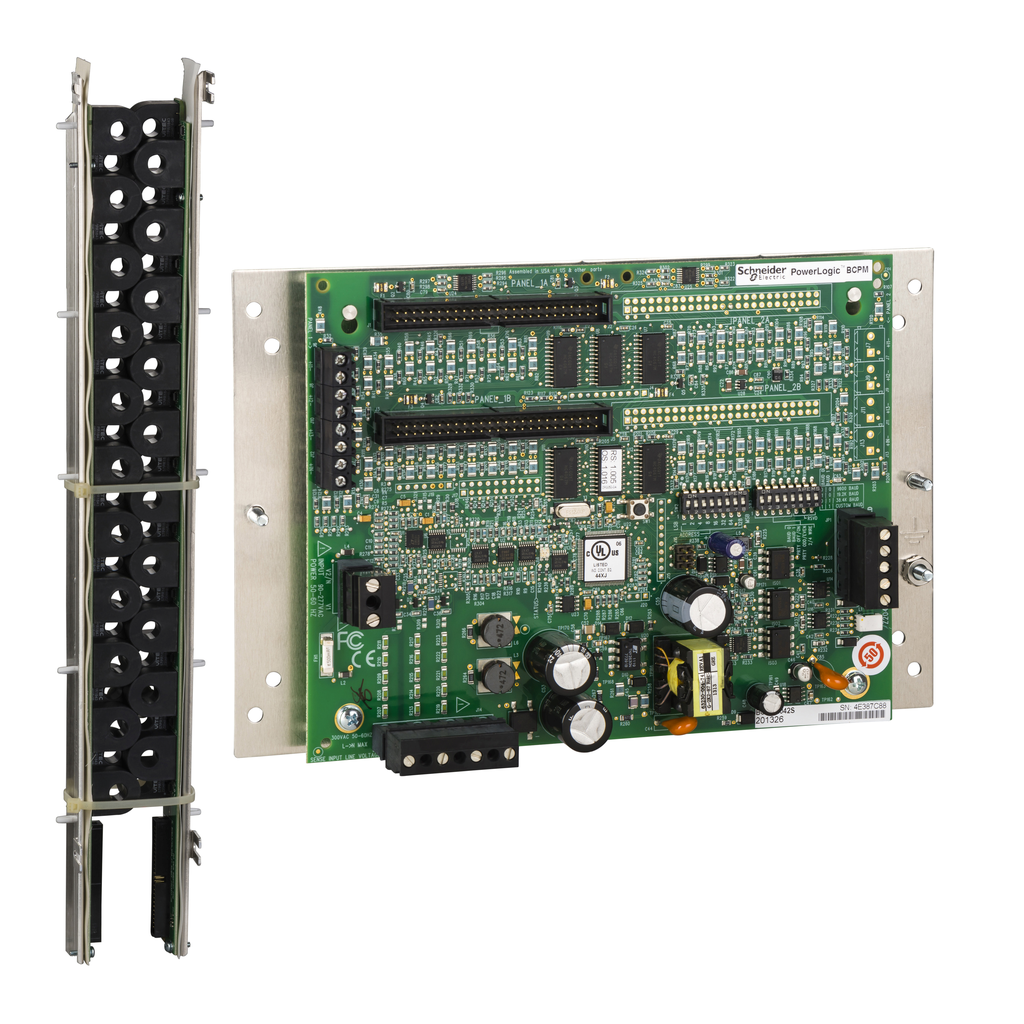

BCPM power monitoring advanced + ethernet - 60 split core CT 50 A | Mayer Electric

SQUARE D . SQDBCPMSCE60S

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameBCPM power monitoring advanced + ethernet - 60 split core CT 50 A | Mayer Electric
UPC3606489870072
Weight1.5
WeightUnitkg
Weight_AttribNet Weight
depth, length71.0
height307.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-BCPM-power-monitoring-advanced-ethernet-60-split-core-CT-50-A-3606489870072
jsonUrlData269217631-e5f6-45da-a76f-ade40063e0f6
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDBCPMSCE60S
qtyInStock0
tierPrice110444.41
width253.0
width_AttribWidth
Network Frequency60 Hz || 50 Hz
Energy Managementsub billing and cost allocation
[Us] Rated Supply Voltage90...277 V AC 50/60 Hz +/- 1 %
Power Quality Analysisvoltage sag and swell detection
Variantadvanced + ethernet
Type Of Measurementvoltage || current || frequency || active power || power factor || active energy
Power Monitoringbasic instrumentation
Product Or Component Typemulti-circuit energy meter
Product NamePowerLogic BCPMSC
Device Applicationsub billing
Device Short NameBCPMSCE
RangePowerLogic
Communication Port SupportRS485 || Ethernet
Measurement Accuracybranch current 2 % 0.25?2 A || branch current 1 % 2?100 A || mains current 3 % 1?100 % || mains current 3 % 2?100 % || voltage 1 % 90?277 V
Measurement Voltage90-277 V phase to neutral || 150-480 V phase to phase
Sampling Rate256 samples/cycle
Communication Port ProtocolModbus RTU || BACnet IP || BACnet MS/TP || Modbus TCP || SNMP v2
Update Time1.8 s
Analogue Input Type60 split core CT 0.333 V
Communication Of Datahigh current alarm || high-high current alarm || low current alarm || under voltage alarm || over voltage alarm || low-low current alarm
Provided Equipment4 x cables || 4 x adapter board || 60 x current transformer
China Rohs RegulationX
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height307 mm
Mounting Modefixed
Ambient Air Temperature For Storage-40-70 ?C
Relative Humidity0-95 % 0-60 ?C
StandardsEN 61010 || UL 508 || IEC 61036 || ANSI C12.1
Mounting Supportchassis
Product CertificationsUL
Width253 mm
Depth71 mm
Net Weight1.5 kg
Operating Altitude9842.52 ft (3000 m)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDBCPMSCE60S111 @ $10444.41
