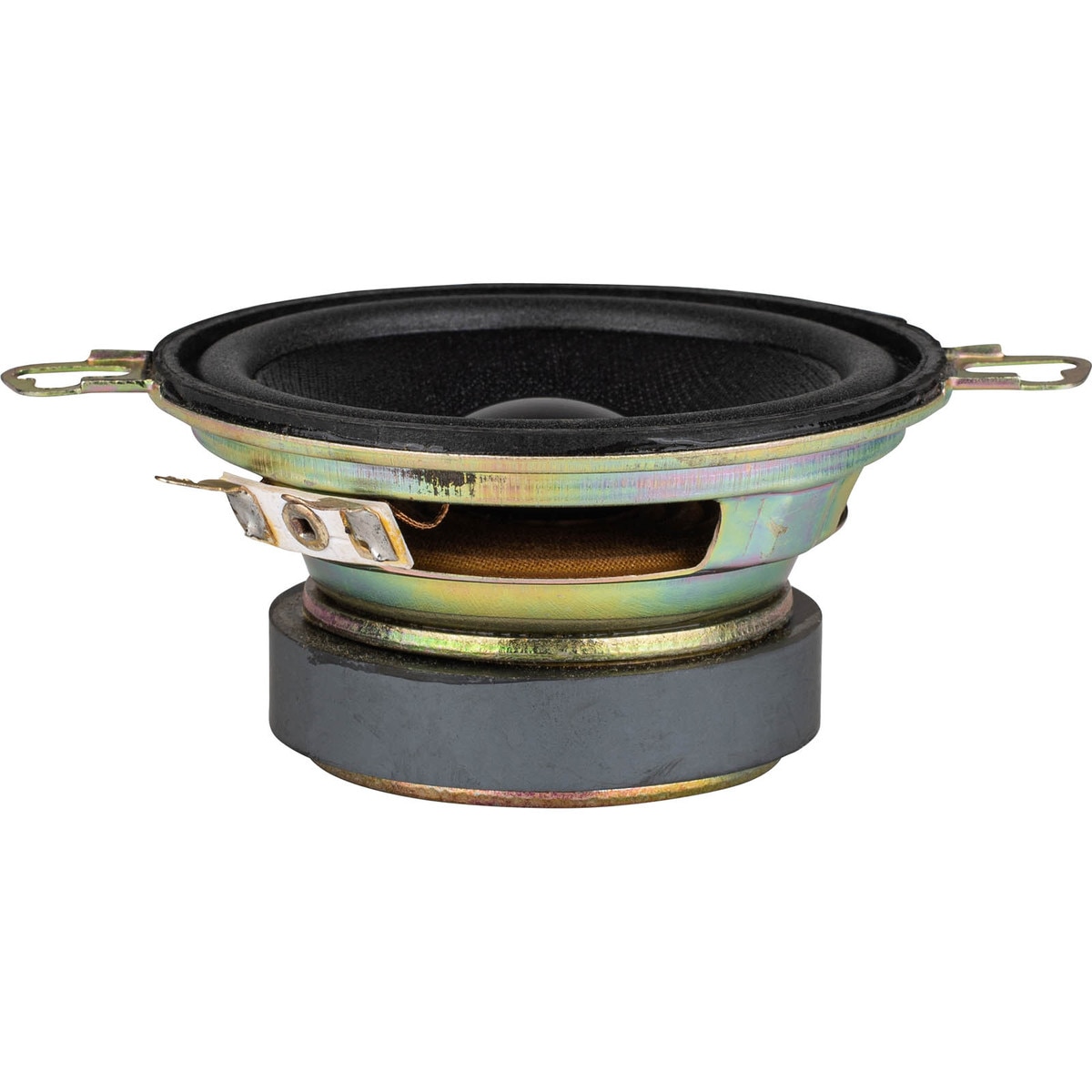

O-14 3-1/2" Paper Cone Full-Range Speaker 8 Ohms

Factory Buyouts . O-14

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameO-14 3-1/2" Paper Cone Full-Range Speaker 8 Ohms
UPC848864073941
Weight0.7
WeightUnitlbs
depth, length1.75
diameter, height, width3.5
height_Attrib, width_AttribNominal Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelO-14
qtyInStock-2
qtySourceFieldMap
SKU, Part Number299-4298
tierMinQty230
tierMinQty360
tierPrice12.88
tierPrice22.56
tierPrice32.45
Unit of MeasureEach
Nominal Diameter3-1/2"
Bolt Circle Diameter4.125
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8?
Frequency Response100 to 12,000Hz
Sensitivity84.3dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)138Hz
DC Resistance (Re)7.2?
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)5.56
Electromagnetic Q (Qes)1.98
Total Q (Qts)1.46
Compliance Equivalent Volume (Vas)0.041ft?
Mechanical Compliance of Suspension (Cms)0.097mm/N
BL Product (BL)2.75T?m
Diaphragm Mass Inc Airload (Mms)2.4g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)38.4cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter3.5"
Baffle Cutout Diameter3.125"
Depth1.75"
# Mounting Holes2
Sealed Volume0.55ft?
Sealed F3127Hz
Vented Volume0.056ft?
Vented F3114Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com299-42981-211 @ $2.88, 30 @ $2.56, 60 @ $2.45
