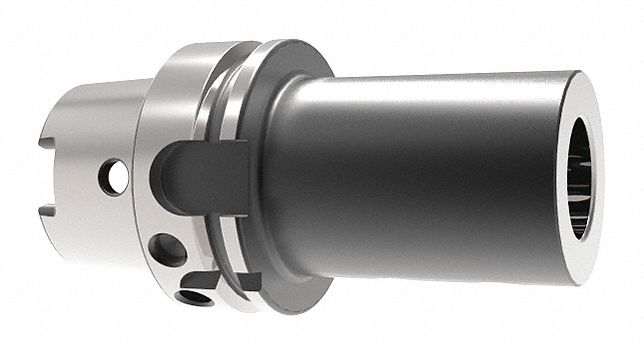

KELCH . 590.0003.324

Technical Specification Item Collet Chuck For Use With Cutting Tools Projection 100mm Compatible with Product Type Indexable Drills Coolant Fed Coolant Through Features Position of the Front Threaded Pin Opposite the Countersunk Point in Straight Shank Offset by 0.4mm per DIN 6595, Offset Allows the Drill Flange to be Clamped Against the Contact Face of the Tool Holder when the Threaded Pin is Tightened For Shank Type DIN 6595 and ISO 9766 Includes Clamping Screw Mounting Size HSK100A Mounting Type HSKA Nominal Capacity 32mm Nose Dia. 52mm Overall Length 150mm Standards ISO 12164-1 This listing is for each. Coolant Feed : Through Center Type : HSK 100 Overall Tool Side Dia. : 52mm Style : HSK 100 Item : Collet Chuck Taper : 100 Tool Side Dia. : 32mm Programming Length : 100mm For Use With : Cutting Tools Nose Dia. : 52.00mm Overall Length : 150.00mm Projection : 100.00mm Standards : ISO 12164-1 Includes : Clamping Screw Coolant Fed : Coolant Through Mounting Size : HSK100A Nominal Capacity : 32.00mm Compatible with Product Type : Indexable Drills For Shank Type : DIN 6595 and ISO 9766 Features : Position of the Front Threaded Pin Opposite the Countersunk Point in Straight Shank Offset by 0.4mm per DIN 6595, Offset Allows the Drill Flange to be Clamped Against the Contact Face of the Tool Holder when the Threaded Pin is Tightened Country of Origin (subject to change) : China
