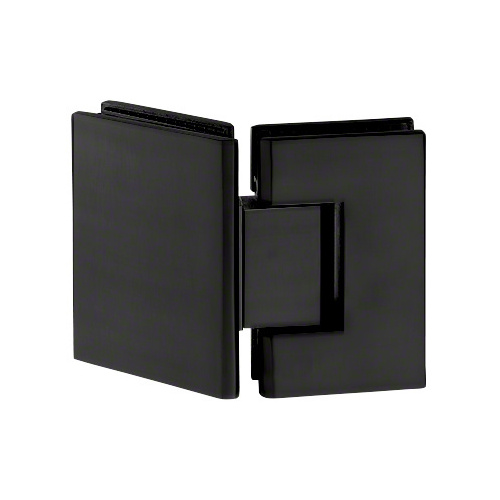

US Horizon H135GTGAMB Designer Adjustable 135 Degree Glass To Glass Hinge Matte Black
Using two hinges with 3/8" to 1/2" glass the hinges will hold up to 80 lbs (36 kg) with a maximum door width of 30" (762 mm). Using three hinges with 3/8" to 1/2" glass the hinges will hold up to 120 lbs (54 kg) with a maximum door width of 36" (914 mm). *** Steps: 1. Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws (B).
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | U.S. Horizon Mfg., Inc. |
|---|---|
| CategoryIdL3 | Designer Series |
| CategoryL1 | Bathroom Hardware |
| CategoryL2 | Shower Door Hinges & Hinge Replacement Parts |
| Extra Product Name | US Horizon H135GTGAMB Designer Adjustable 135 Degree Glass To Glass Hinge Matte Black |
| Weight, Max Door Weight-3 Hinges (Lbs) | 120 |
| WeightUnit | lbs |
| Weight_Attrib | Max Door Weight-3 Hinges (Lbs) |
| atoms, moq, multiple, tierMinQty1 | 1 |
| color, Color, Finish | Matte Black |
| MPN, SKU | H135GTGAMB |
| qtyInStock | -2 |
| qtySource | FieldMap |
| tierPrice1 | 133.7 |
| Material | Brass |
| Mounting Style | Glass To Glass |
| Glass Fabrication Required | Cutout |
| Edge Profile | Square |
| Adjustable, Self-Centering | Yes |
| 5 Degree Pre-Set | No |
| Glass To Glass Angle (Degrees) | 135 |
| Max Door Width - 3 Hinges (IN) | 36 |
| Max Door Weight-2 Hinges (Lbs) | 80 |
| Glazing Thickness (Inches) | 1/2, 3/8 |
| Max Door Width - 2 Hinges (IN) | 30 |
