Transition Networks Transition Stand-Alone - Media Converter - 10Base-T, 1000Base-Sx, 100Base-Tx, 1000Base-T - Rj-45 / Sc Multi-Mode - External - Up To 1800 Ft - 850 Nm - M/GE-PSW-SX-01-NA

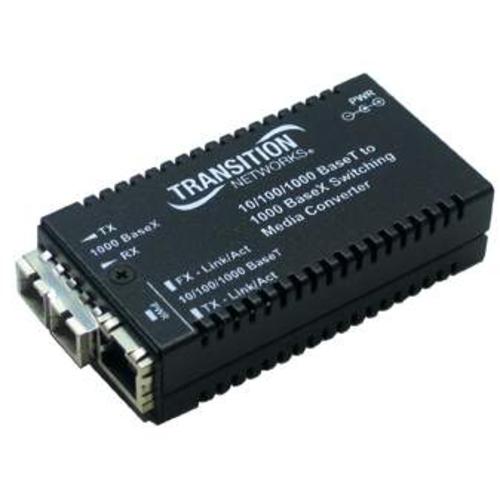

Transition Networks 10/100/1000Base-TX to 1000Base-SX Media Converter

The Transition Networks M/GE-T-SX-01-NA SC mini transceiver/media converter integrates fiber optic cable into a gigabit UTP environment. This mini media converter helps to convert 1000Base-T copper network connection to 1000Base-SX fiber network connection. It features auto-negotiation, auto MDI/MDIX and automatic link restoration. The LED light indicator allows you to know the status of network connection. . Transceiver/media converter converts 1000Base-T copper network connection to 1000Base-SX/LX fiber network connection. Dimensions: 0.85"H x 1.8"W x 3.3"D. Interfaces/port: 1 x Network (RJ-45), 1 x SC. Ethernet technology: Gigabit Ethernet. Media type supported: Multi-mode optical fiber. Wavelength: 850 nm. Maximum data transfer rate: 1 Gbps. Operating range: 1804.46'. Form factor: Desktop, wall mountable, rack-mountable. Power: 7.5 - 13.9 VDC, 2.4 W consumption. LED indicators: Power below RJ-45: On: Power, FX-Link/Act upper left on RJ-45: On: link, flashing: Activity. Fiber integration, extend network distance. Low-latency design, space saving design. Meets RoHS, WEEE standards. Comes with lifetime warranty.

The Transition Networks 2-port RJ-45 to SC mini Gigabit Ethernet media converter is perfect for integrating fiber optic cabling into a 10/100/1000 UTP environment. It features unit and port LEDs for status information. This converter supports auto-negotiation, fixed link pass through and automatic link restoration for efficient troubleshooting. The AutoCross feature in this media converter automatically detects and configures the twisted pair port to the correct MDI or MDI-X configuration. Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment. Dimensions: 0.85"H x 1.8"W x 3.3"D. Suitable for use with PC. Comes in black color. Interfaces/ports: One 10/100/1000Base-T RJ-45, one multi mode SC. Power supply: Unit accepts 5 - 28 VDC wall mount AC adapter - 12 VDC 400 mA, Consumption: 3.15 W. LEDs: PWR (power) - (below RJ-45) ON = lit for normal operation, FX-link/act (fiber link/activity) - (upper left on RJ-45), ON = link. IEEE standards: IEEE 802.3. Frame size: 1632 bytes untagged, 1628 bytes tagged. Features auto-MDI/MDIX, auto-negotiation, automatic link restoration, fixed link pass through and space saving design. Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing. Meets UL, CSA, CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark certifications and standards. Weight: 2 lbs. Comes with lifetime warranty.
