500W ATX12V V2.0 Power Supply

380W ATX POWER SUPPLY 24 PIN

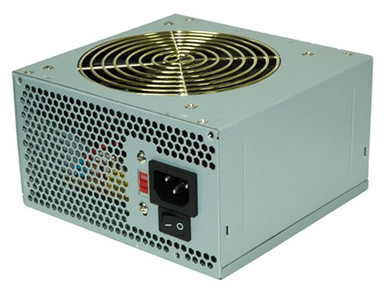

Coolmax V-500 ATX12V Power Supply Input voltage: 100- 120 VAC, 200- 264 VAC. Output voltage: +3.3, +5, +/-12 V. 120 mm silent fan design, long life, noiseless and fastest cooling time. Specially selected components and high performance heat sink to cool down system. Serial ATA 150 ready and fully support all AMD and Intel series demand. PFC: No. Universal connector fits most of branded motherboard. Safety approvals: UL, CSA, FCC, TUV. 1 year limited warranty.

SpecificationsMfr Part Number: V-500Features:ATX12V version 2.0Triple +12V output designSerial ATA 150 readyMTBF 100,000 hoursOver voltage protection & short circuit protectionWattage: 500 WAC Input: 115~230V ACOutput: +3.3V @ 21A, +5V @ 22A, +12V1 @ 17A, +12V2 @ 17A, +12V3 @ 12A, -12V @ 0.5A, +5VSB @ 2.5ACooling system: 1x 120mm low noise cooling fanConnectors: 1x 20+4pin Main Power; 1x 4pin 12V; 2x SATA; 3x Peripheral; 1x FloppyDimension(WxLxH): 5.9 x 5.6 x 3.3 inch / 15.0 x 14.22 x 8.38cmWeight: 2.99 lbs / 1.36 kg

Additional ResourcesCoolmax V-500 500-Watt Power Supply Product Details Coolmax V-500 500-Watt Power SupplyCoolmax 500-Watt SATA-ReadyPower Supply with 120mm Cooling FanCoolmax has earned a reputation for building solid, high-performance power supplies and this 120mm Silent Cooling Fan Switching Power Supply is certainly no exception. Built with quality components especially designed to offer extra long life and provide maximum system performance, this Coolmax power supply features over voltage, over power and short circuit protection and is compatible with all leading processors including Pentium 4, AMD Athlon XP and Pentium III. Includes built-in EMI filter for exceptionally low ripple noise. You can rely on Coolmax for the coolest, best-built power supplies.Specifications AC INPUT 115V/230V - 60/50Hz DC OUTPUT +3.3V +5V +12V +12V -12V -5V +5VSB 500W Max Combined Watts 30A 45A 18A 16A 1A 0A 2.5A 500W Connectors 20+4 pin P4 MB SATA Peripheral FDD PCI-E x 1 x 1 x 1 x 4 x 1 x 0 Features120mm silent fan design, long life, noiseless and fastest cooling time Specially selected components & high performance heat sink to cool down system Serial ATA 150 ready & fully support all AMD & Intel series demandCable-tube on main power cables for better cable routing and neatnessUniversal Connector Fits Most of Branded MotherboardOver voltage pr

V-500 ATX12V Power Supply is perfect for casual, everyday users who need an efficient power supply that can deliver the watts necessary without all the additional features. Product Type: Power Supply Input Voltage: 264 V AC Input Voltage: 132 V AC Output Power: 500 W Output Voltage: -12 V DC Output Voltage: 12 V DC Output Voltage: 5 V DC Output Voltage: 3.3 V DC Product Type: Power Supply Compatibility: AMD Series Systems Intel Series Systems Input Voltage: 264 V AC Input Voltage: 132 V AC Manufacturer Part Number: V-500 Output Power: 500 W Limited Warranty: 1 Year Output Voltage: -12 V DC Output Voltage: 12 V DC Output Voltage: 5 V DC Output Voltage: 3.3 V DC Weight (Approximate): 3 lb Manufacturer: Coolmax Technology, Inc Product Model: V-500 Product Name: V-500 ATX12V Power Supply Brand Name: Coolmax Brand Name: Coolmax Height: 3.5 Width: 5.6 Depth: 6 Specification Compliance: ATX12V Number of Fans: 1
