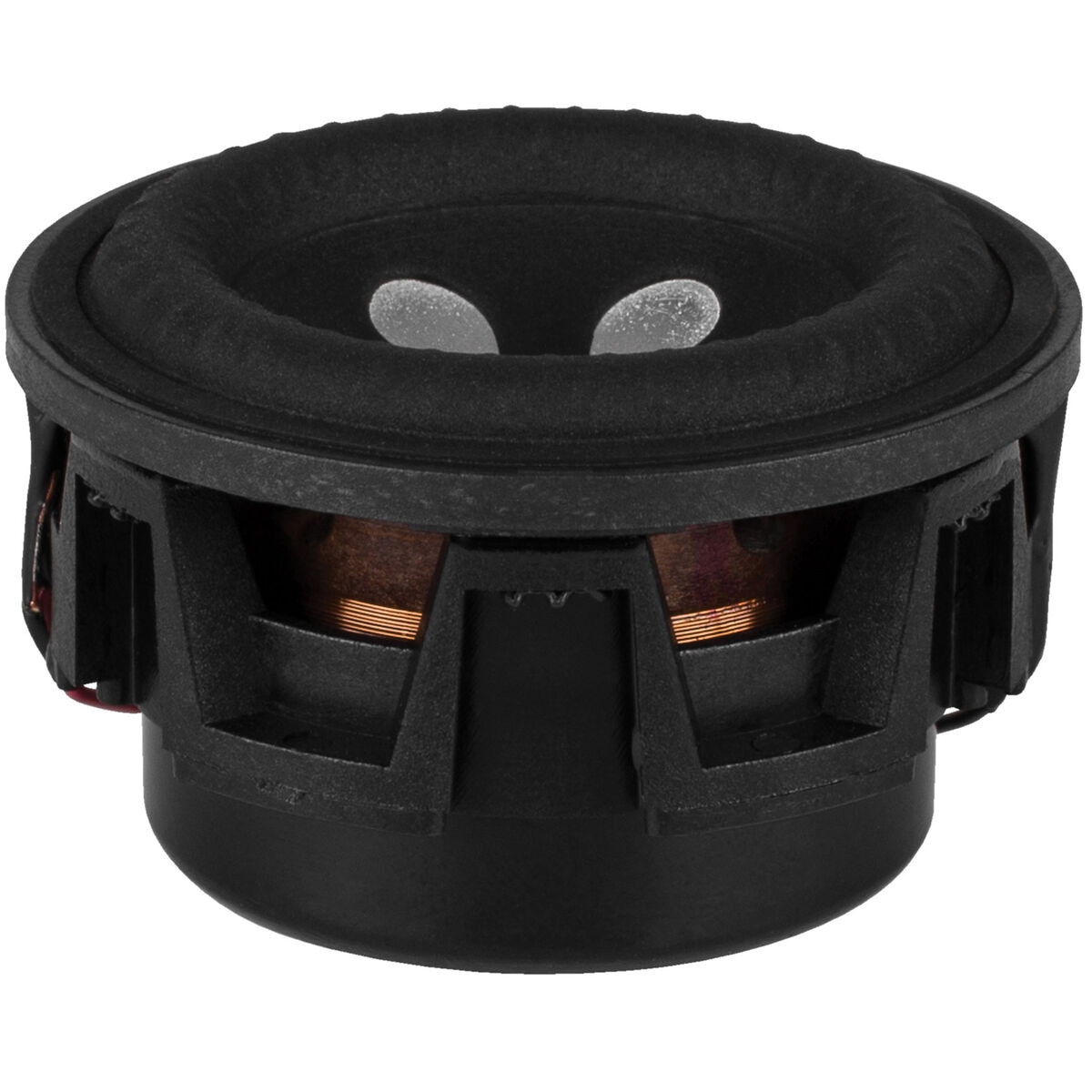

Tang Band W1-2121S 1-3/4" Aluminum Full Range Neodymium Driver

Tang Band W1-2121S 1-3/4" Aluminum Full Range Neodymium Driver. Part Number: 264-825 by Tang Band.

Tang Band . W1-2121S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-2121S 1-3/4" Aluminum Full Range Neodymium Driver
UPC848864023717
Weight0.25
WeightUnitlbs
depth, length1.07
diameter, height, width1.81
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW1-2121S
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-825
snippetTang Band W1-2121S 1-3/4" Aluminum Full Range Neodymium Driver. Part Number: 264-825 by Tang Band.
Unit of MeasureEach
Nominal Diameter1-3/4"
Power Handling (RMS)6 Watts
Power Handling (MAX)12 Watts
Impedance4?
Frequency Response120 to 15,000Hz
Sensitivity79dB 2.83V/1m
Voice Coil Diameter1.1"
Resonant Frequency (Fs)120Hz
DC Resistance (Re)3.5?
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)1.33
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.0038ft?
Mechanical Compliance of Suspension (Cms)0.949mm/N
BL Product (BL)3.14T?m
Maximum Linear Excursion (Xmax)2.3mm
Surface Area of Cone (Sd)8.935cm?
Cone MaterialAluminum
Surround MaterialSantoprene?
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter1.81"
Baffle Cutout Diameter1.67"
Depth1.07"
Sealed Volume0.005ft?
Sealed F3302.6Hz
Vented Volume0.008ft?
Vented F3106.3Hz
